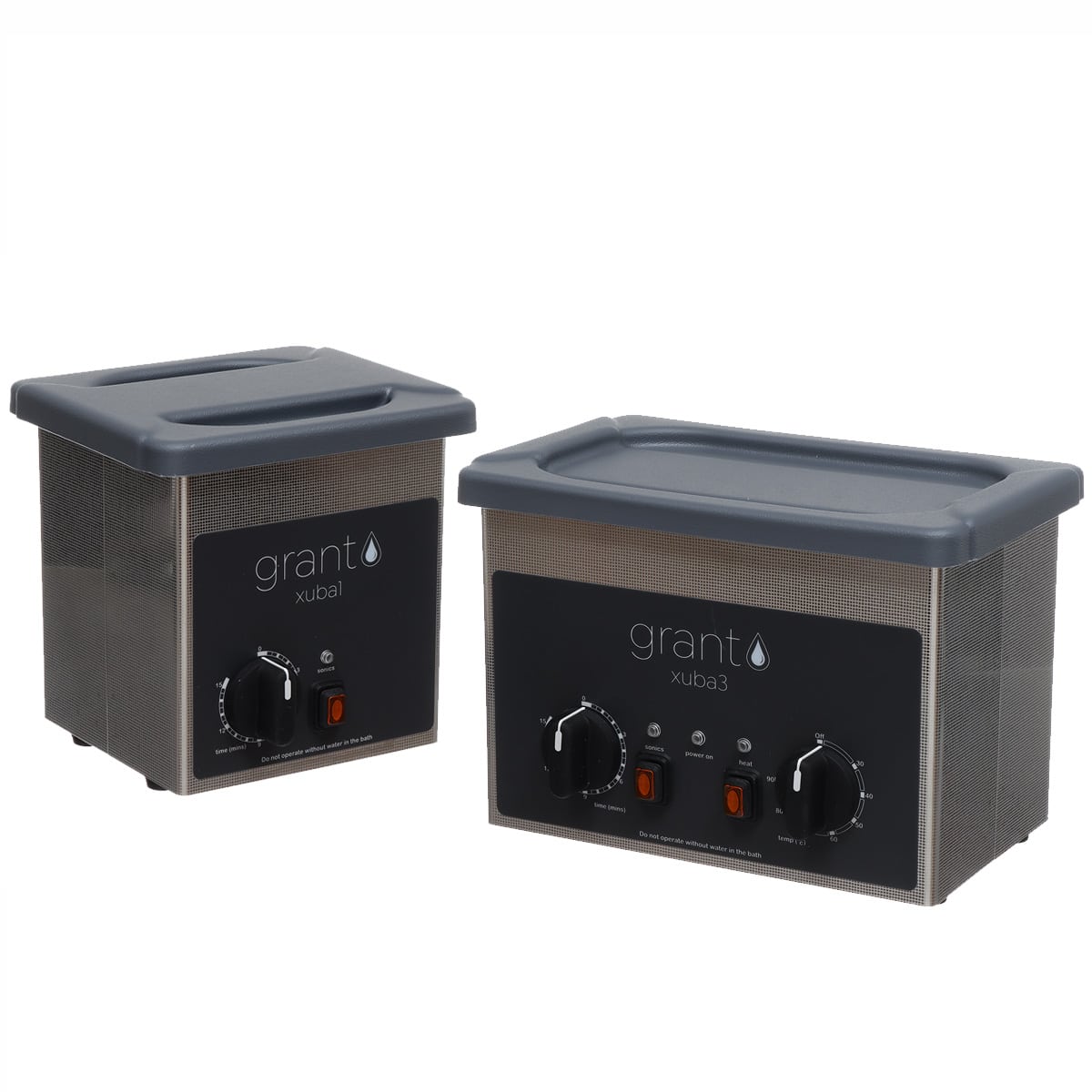

XUBA Analogue Ultrasonic Bath Range

£455.00
£455.00
Shipping calculated at checkout.

Compact analogue-controlled range of ultrasonic baths providing a high standard of reliable and effective ultrasonic technology.

Need more information?

Need more information?

Please fill out the form below and we will get back to you.

The choice of two baths come in a great value for money package, with M2 cleaning solution, stainless steel basket and ABS plastic lid included as standard (Available in 230V versions only).

  • Excellent entry level ultrasonic baths
  • Temperature range ambient +5ºC to 70ºC on the XUBA3
  • Fast, effective, efficient, easy and safe cleaning and processing of diverse instruments, components and solutions
  • Supplied with stainless steel basket and ABS plastic lid as standard
  • One bottle of M2 ultrasonic cleaning solution included as standard
  • Robust design offers outstanding durability and reliability
  • Control panel easy to operate even when wearing gloves
  • Timer control from 0-15 minutes

‍

Specification XUB5 XUB10 XUB12 XUB18 XUB25 XUBA1 XUBA3
Type Digital Digital Digital Digital Digital Analogue Analogue
Dimensions h x d x w mm 266 x 235 x 345 266 x 220 x 545 365 x 330 x 342 365 x 385 x 375 365 x 385 x 546 200 x 185 x 198 195 x 166 x 275
Working capacity L 4.5 9.5 12.5 17.5 25 1.5 2.5
Max capacity L 5 10.5 14 18.5 28 1.75 2.75
Temperature range ºC Ambient +5 to 70 N/A Ambient +5 to 70 Ambient +5 to 70 Ambient +5 to 70 N/A N/A
Ultrasonic power W 100 200 200 300 400 35 35
Ultrasonic power per litre W/L 22.2 21 16 17 16 23.3 14
Operating frequency KHz 32-38 32-38 32-38 32-38 32-38 44 44
Frequency LEAP • • • • • - -
Digital LCD controls • • • • • - -
SD port with SD card • • • • • - -
Timer 0-99 minutes 0-99 minutes 0-99 minutes 0-99 minutes 0-99 minutes 0-15 minutes 0-15 minutes
Drain outlet BSP valve 3/8'' BSP valve 3/8'' BSP valve 3/8'' BSP valve 3/8'' BSP valve 3/8'' N/A N/A
Heater power 230V W 150 250 300 450 650 N/A 150
Heater power 120V W 125 240 365 480 600 N/A -
Supply voltage V 120 or 230 120 or 230 120 or 230 120 or 230 120 or 230 230 only 230 only
Weight kg 6.4 9.3 10.5 12.6 15.1 2.3 3.3

  • Healthcare/clinical - the first stage of the decontamination process for reusable surgical instruments in dental, podiatry and general practice settings
  • General use - glass, equipment, component cleaning, sonication of cytometer nozzles, dispersion and solubulisation
  • Laboratories - cleaning of components, degassing fluids, mixing fluids and compounds, cell disruption, fluid dissolution
  • Industrial - light manufacturing
  • Biopharm - dissolution of samples

‍

Product Manuals
Technical Datasheets

No downloads available

Further Information
XAB1 (supplied as standard with the baths)

Replacement basket for XUBA1. Internal basket dimensions including handle (w x d x h): 265 x 120 x 140mm

XAB3 (supplied as standard with the baths)

Replacement basket for XUBA3. Internal basket dimensions including handle (w x d x h): 263 x 203 x 193mm

XAL1 (supplied as standard with the baths)

Replacement ABS lid for XUBA1.

XAL3 (supplied as standard with the baths)

Replacement ABS lid XUBA3.

M2 SOL

General purpose detergent for use with ultrasonic baths. Pack of 6 x 1L bottles
