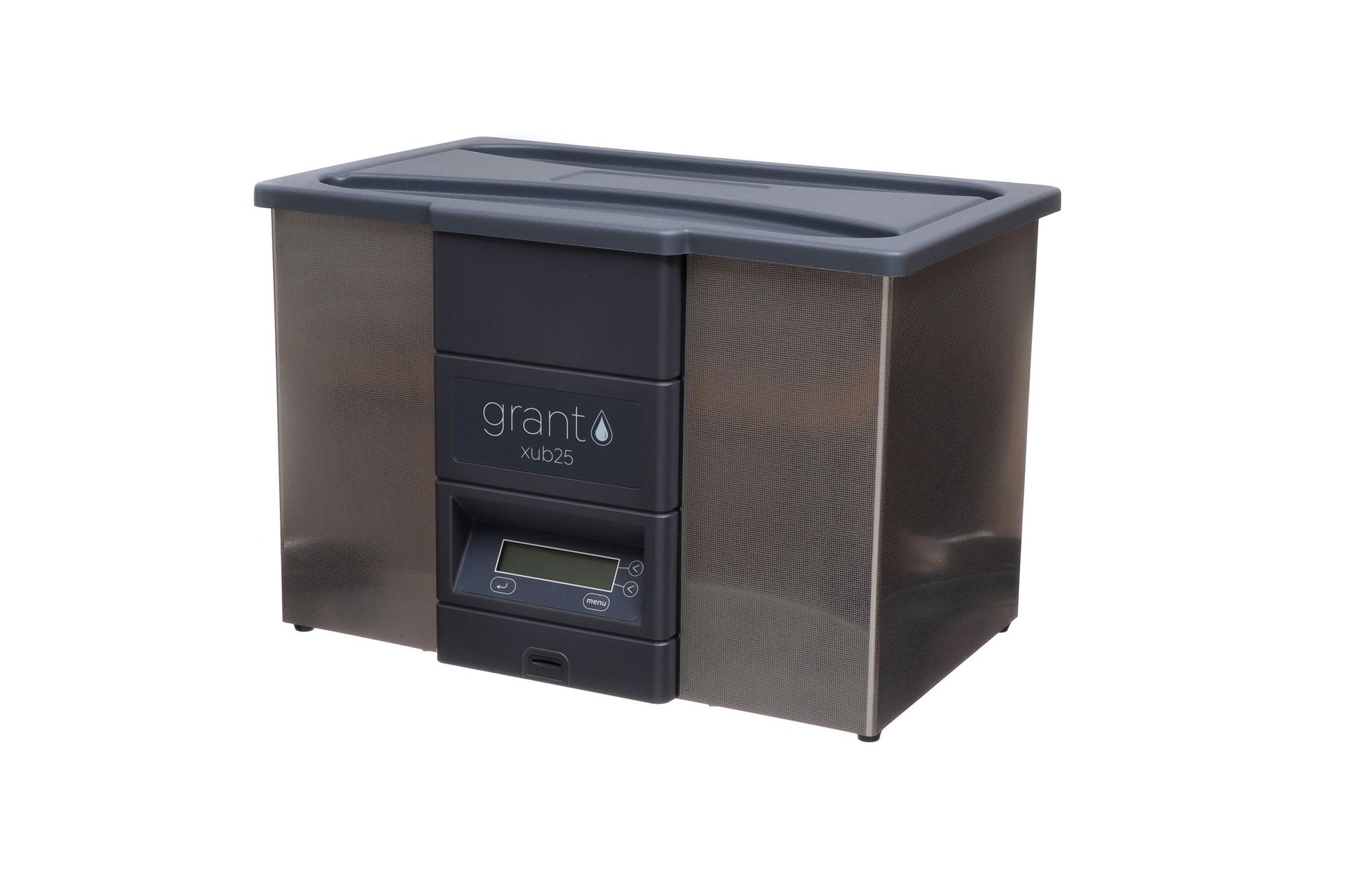

XUB Digital Ultrasonic Bath Range

The XUB range of digitally controlled benchtop ultrasonic baths offer consistent and reliable performance in a variety of environments.
Applications
  • Healthcare/clinical - the first stage of the decontamination process for reusable surgical instruments in dental, podiatry and general practice settings
  • General use - glass, equipment, component cleaning, sonication of cytometer nozzles, dispersion and solubulisation
  • Laboratories - cleaning of components, degassing    fluids, mixing fluids and compounds, cell disruption, fluid dissolution
  • Industrial - light manufacturing
  • HPLC - degassing of solvents pre analyses
  • Biopharm - dissolution of samples

Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

Incorporating Frequency LEAP technology to ensure uniform levels of ultrasonic activity throughout the fluid, these baths offer high performance giving an accurate and precise ultrasonic process.

  • Temperature range ambient +5ºC to 70ºC
  • Frequency LEAP technology provides more homogeneous ultrasonic activity throughout the tank, reducing dead spots and standing waves
  • Accurate process control of time, temperature, ultrasonic activity, degas and power
  • Modern, sleek design with stainless steel basket, ABS plastic lid, M2 ultrasonic cleaning solution, SD card and drain tap included as standard
  • Degassing function to remove small bubbles from liquid, reducing the overall time needed for ultrasonic operation
  • A choice of 4 sizes
  • Adjustable power that can be reduced from 100 to 50% in 5% increments

Products in the range

  • XUB5 - 5L
  • XUB12 - 12L
  • XUB18 - 18L
  • XUB25 - 25L

Video

Specifications

XUB5 XUB12 XUB18 XUB25
Dimensions (h x d x w) 266 x 235 x 345mm 365 x 330 x 342mm 365 x 385 x 375mm 365 x 385 x 546mm
Working capacity 4.5L 12.5L 17.5L 25L
Max capacity 5L 14L 18.5L 28L
Temperature range Ambient +5 to 70°C Ambient +5 to 70°C Ambient +5 to 70°C Ambient +5 to 70°C
Ultrasonic power 100W 200W 300W 400W
Ultrasonic power (per litre) 22.2W 16W 17W 16W
Operating frequency 32-38KHz 32-38KHz 32-38KHz 32-38KHz
Frequency LEAP
Heated
Digital LCD controls
SD port with SD card
Timer 0-99 minutes 0-99 minutes 0-99 minutes 0-99 minutes
Drain outlet BSP valve 3/8'' 3/8'' 3/8'' 3/8''
Heater power - 230V 150W 300W 450W 650W
Heater power - 120V 125W 365W 480W 600W
Supply voltage 120 or 230V 120 or 230V 120 or 230V 120 or 230V
Weight 6.4kg 10.5kg 12.6kg 15.1kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

XAB5

Replacement basket for XUB5.  Dimensions (WxDxH): 265 x 120 x 140mm

XAB12

Replacement basket for XUB12. Dimensions (WxDxH): 263 x 203 x 193mm

XAB18

Replacement basket for XUB18. Dimensions (WxDxH): 295 X 267 X 160mm

XAB25

Replacement basket for XUB25. Dimensions (WxDxH): 463 x 263 x 159mm

XAL5

Replacement ABS lid for XUB5

XAL12

Replacement ABS lid for XUB12

XAL18

Replacement ABS lid for XUB18

XAL25

Replacement ABS lid for XUB25

M2 SOL

General purpose detergent for use with ultrasonic baths. Pack of 6 x 1L bottles

SANIT1

4x 1L bottles of liquid sanitiser. Measuring cup included. For the prevention of bacterial growth, fungal growth and slime in water baths


Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
xub Operating Manual-115V (Ultrawave C6037501-01)
download
xub Operating Manual-230V Multilanguage

Technical Datasheets

No downloads available

Further Information

download
Ultrasonic Baths Overview
download
19214a Liquid Sanitiser
download
Stability Test Report Grant Liquid Sanitiser
download
Grant Liquid Sanitiser MSDS Sheet
download
Grant Liquid Sanitiser Product Sheet
