UVCT-M-AR - PCR UV Cabinet

£3,262.00
£3,262.00
Shipping calculated at checkout.

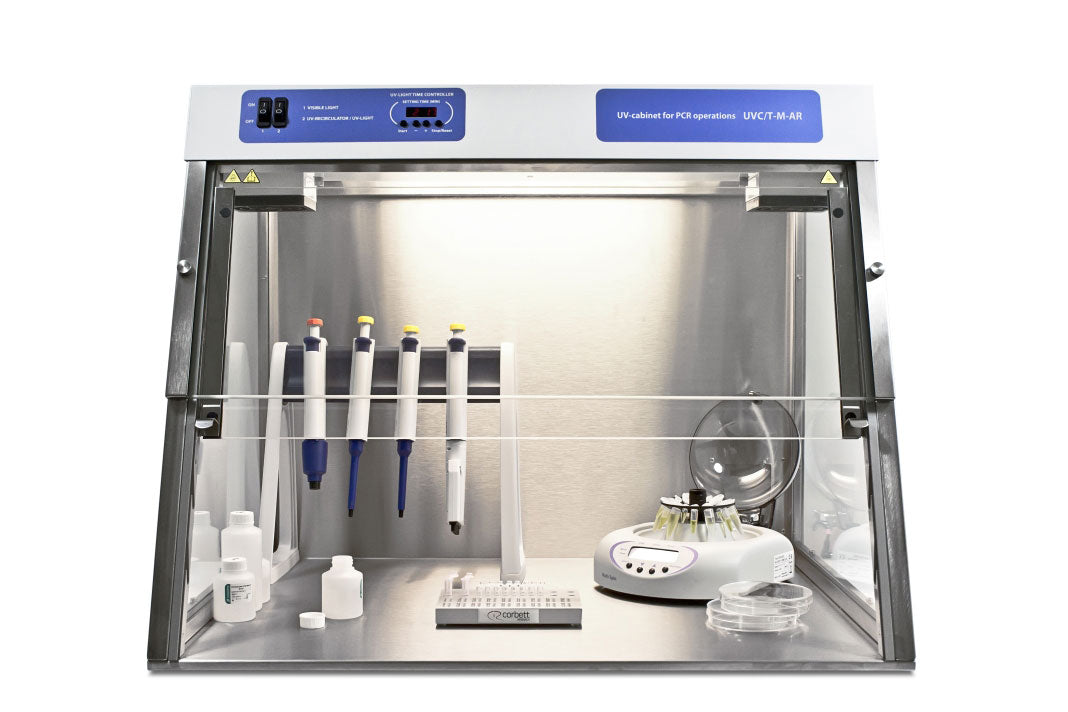

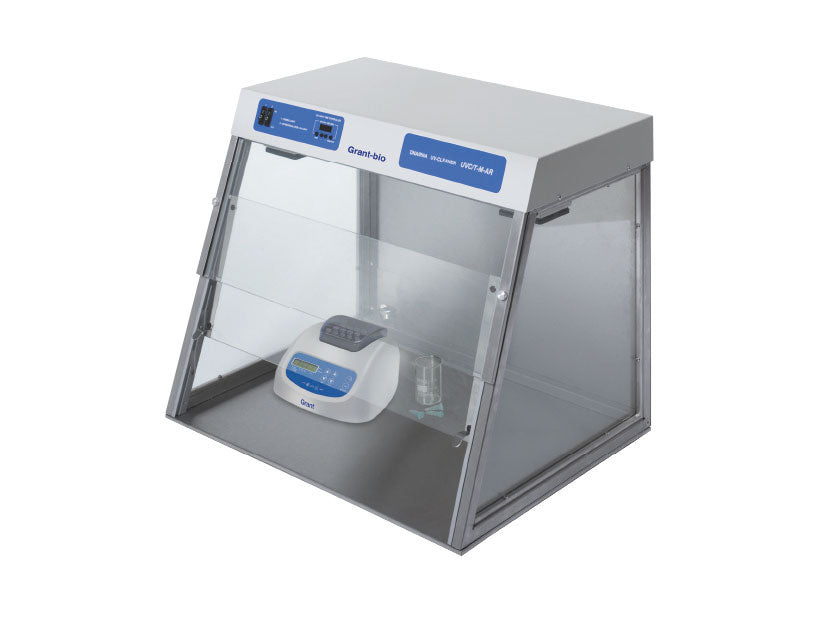

The Grant bio UVC/T-M-AR is an efficient general-purpose stainless steel PCR UV cabinet workstation for carrying out short-term procedures.

Need more information?

Need more information?

Please fill out the form below and we will get back to you.

The UVC/T-M-AR cabinets are equipped with an open UV lamp installed in the upper part of the hood. UV-radiation from these lamps effectively disinfects the working area chamber, inactivating DNA / RNA fragments during 15-30 minutes of exposure. The digital timer controls the duration of the direct UV irradiation. An additional daylight lamp provides a bright, clear working area.

Models are equipped with a high efficiency flow-type bactericidal UV cleaner-recirculator which provide constant decontamination inside the cabinet during operation. The UV cleaner-recirculator consists of UV lamp, dust filters and a fan. The recirculation effect increases the maximum density of the UV light making it sufficiently effective for DNA / RNA inactivation. The recirculator processes 360 UV-cabinet volumes per hour, creating permanently aseptic conditions within the cabinet.

Designed for robustness and ease of access, it features a built-in UV cleaner-recirculator to prevent unwanted contamination and to protect the user from direct UV light during manipulation.

  • Built-in patented UV cleaner-recirculator both increases the maximum density of UV light and generates 25 m³/h air flow exchange – prevents unwanted contamination and protects the user from direct UV light during manipulation
  • UV surface irradiation – via single 25W 254nm open UV lamp
  • High intensity UV cleaner – 25m³/hour cleaner-recirculator continuous air flow with 1cm UV irradiation distance
  • UV protection – UV-protective film on glass panels
  • UV exposure controlled by 24h digital timer
  • Convenient, easy to use digital timer for accurate control of UV exposure
  • White lamp provides local illumination of the workplace to optimise visual control during operations
  • Irradiated UV light automatic switch-off when door opened
  • Front opening with three adjustable positions for ease of access
  • Suppled with 1 access port and internal power socket

‍

Specification Details
Dimensions (h x d x w) 535 x 515 x 690mm
Construction Stainless steel frame and working area
Panels Glass with UV-protective film
Front opening with three adjustable positions •
Open UV lamp, 25W bactericidal, 254nm, ozone free 1
Bactericidal air recirculator, 25m³/h air flow exchange •
UV recirculator, 25W (efficiency >99% per 1 cycle) 1
Day light white lamp for workplace illumination 15W (1)
Radiation type Ultraviolet (253.7nm), ozone free
Optical transmission 0.95
Digital timer (non stop) 1 min – 24 hours
Internal power outlets 1
Internal working area 645 x 490mm
Flow rate 7
Power consumption 67W (0.3A)
Nominal operating voltage 120 or 240V (50/60Hz)
Weight (net) 28.8kg

  • These PCR UV-cabinets are designed for clean operations with DNA samples and provide protection against contamination. They are not recommended for operations with dangerous infectious and viral materials as well as DNA / RNA amplification.

Product Manuals

Technical Datasheets

No downloads available

Further Information
T-4

Table for UV cabinet (For use with UVT-S-AR UK)

LF-1

5-drawer system for use with T4 & T-4L (For use with UVC/T-M-AR UK, UVT-B-AR UK, UVT-S-AR UK)

F-1

Shelf for UV cabinet (For use with UVC/T-M-AR UK, UVT-B-AR UK, UVT-S-AR UK)

P-5

Pipette shelf for UV cabinet
