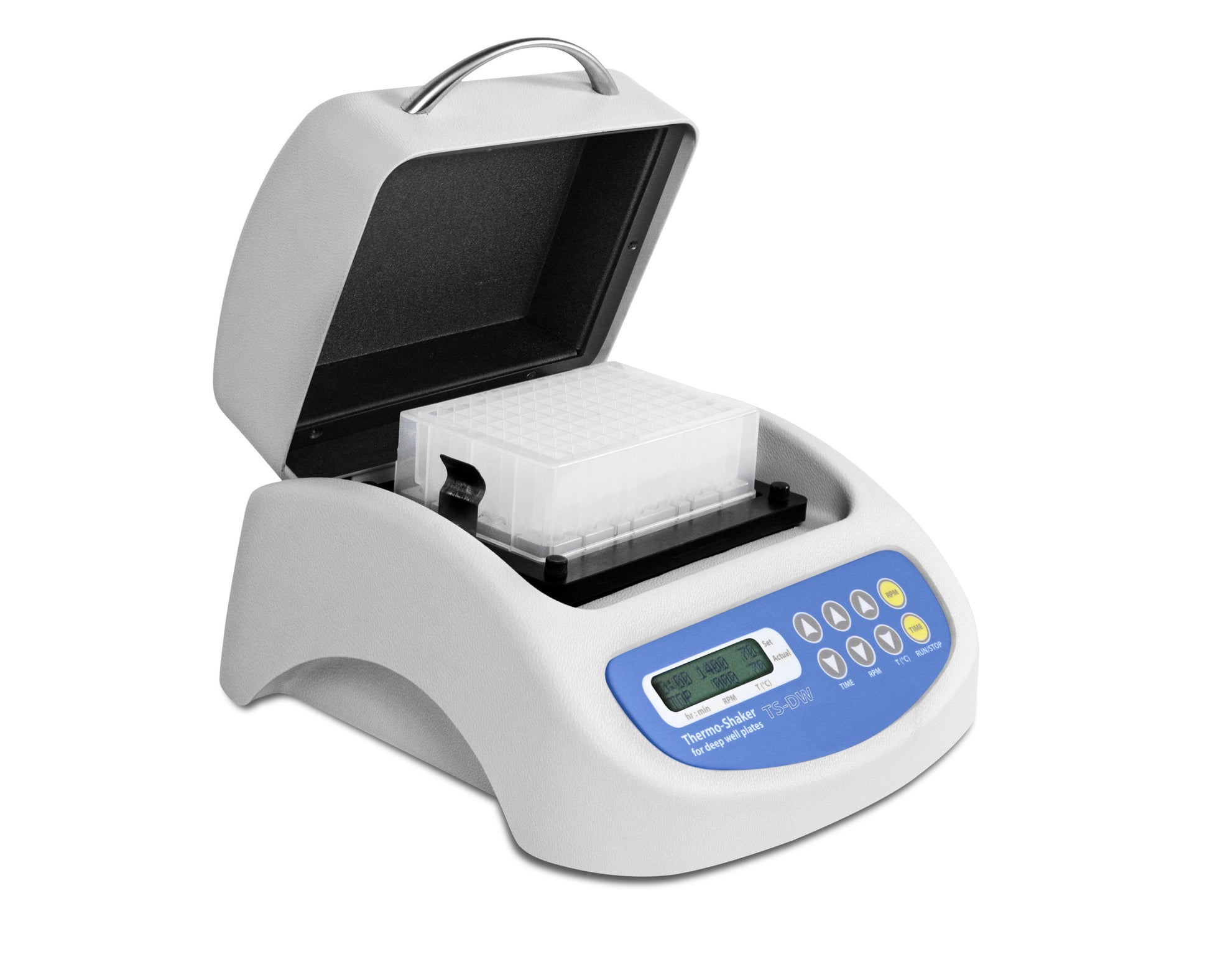

TS-DW - Deep well plate Thermoshaker
- Regular price
- £1,540.00
- Sale price
- £1,540.00
- Regular price
-
- Unit price
- / per
A thermoshaker designed for shaking and heating of deep well plates.
* The system does not come with blocks; these must be ordered separately.
Need more information?
Need more information?
Please fill out the form below and we will get back to you.
Need more information?
Please fill out the form below and we will get back to you.
A multisystem principle, used in design of the thermoshaker allows it to operate as 3 independent devices:
- Incubator
- Plate shaker
- Thermoshaker
| Specification | Details |
|---|---|
| Model | TS-DW |
| Mixing speed control range | 250 to 1400 rpm |
| Temperature control range | Ambient +5 to 100ºC |
| Temperature setting range | +25 to 100ºC |
| Orbit (diameter) | 2 mm |
| Temperature uniformity | ±0.1ºC |
| Temperature accuracy | ±0.5ºC |
| Timer with sound alarm | 1 min to 96 hrs |
| Heated lid | Yes |
| Capacity | 1 deep well plate (Eppendorf®, Sarstedt®, Axygen®, Starlab®, custom*) |
| External power supply | Input AC 120-230V, 50/60Hz; Output DC 12V |
| Input voltage | 12V dc |
| Power consumption | 58W (4.8A) |
- Life science applications, molecular biology, cell biology lab, cell lysis, DNA isolation and purification, sample preparation for PCR, pellet re-suspension, or any other method where you have many samples that need mixing in deep well plates.
Product Manuals
- TS-DW Operating Manual - ES
- TS-DW Operating Manual - IT
- TS-DW Operating Manual - DE
- TS-DW Operating Manual - FR
- TS-DW Operating Manual - EN
Technical Datasheets
No downloads available
Further Information
B-2A
Interchangeable block for one deep-well plate Axygen® 96/2200 µl
B-2E
Interchangeable block for one deep-well plate Eppendorf® 96/1000 µl
B-2S
Interchangeable block for one deep-well plate Sarstedt® 96/2200 µl
B-2SL
Interchangeable block for one deep-well plate Starlab® 96/1200 µl
B-2SD
Interchangeable block heating for AB Gene DW Plate AB-0932
B-2M
Interchangeable block heating for Thermo Scientific Kingfisher™ Flex™
B-05E
Interchangeable block for EPPENDORF® 96/500 μl
B-05PO
Interchangeable block for PlateOne, 96/0.5 ml
B-06A
Interchangeable block for Corning Axygen® 96/600μl
B-08AB
Interchangeable block for Abgene 96-well, 800 μl.
B-12AB
Interchangeable block for Abgene™ 96 Well 1.2mL plate
B-1B
Interchangeable block for Brand 1.1 ml deep well plate
B-1R
Interchangeable block for Riplate® 96/1000 μl
B-2BBI
Interchangeable block for SSI Bio
B-2KF
Interchangeable block for PowerMag Glass Bead Plate 96
B-2N
Interchangeable block for Nunc® 96/2000 μl
B-2PO
Interchangeable block for PlateOne, 96/2 ml
B-2R
Interchangeable block for Riplate® 96/2000 μl
B-PCR
Interchangeable block for one PCR plate (unskirted, semiskirted, skirted)
Rubber belt | BS0002
Rubber belt 122x0.6x6.0mm
