TS-100C Pro

£1,850.00
£1,850.00
Shipping calculated at checkout.

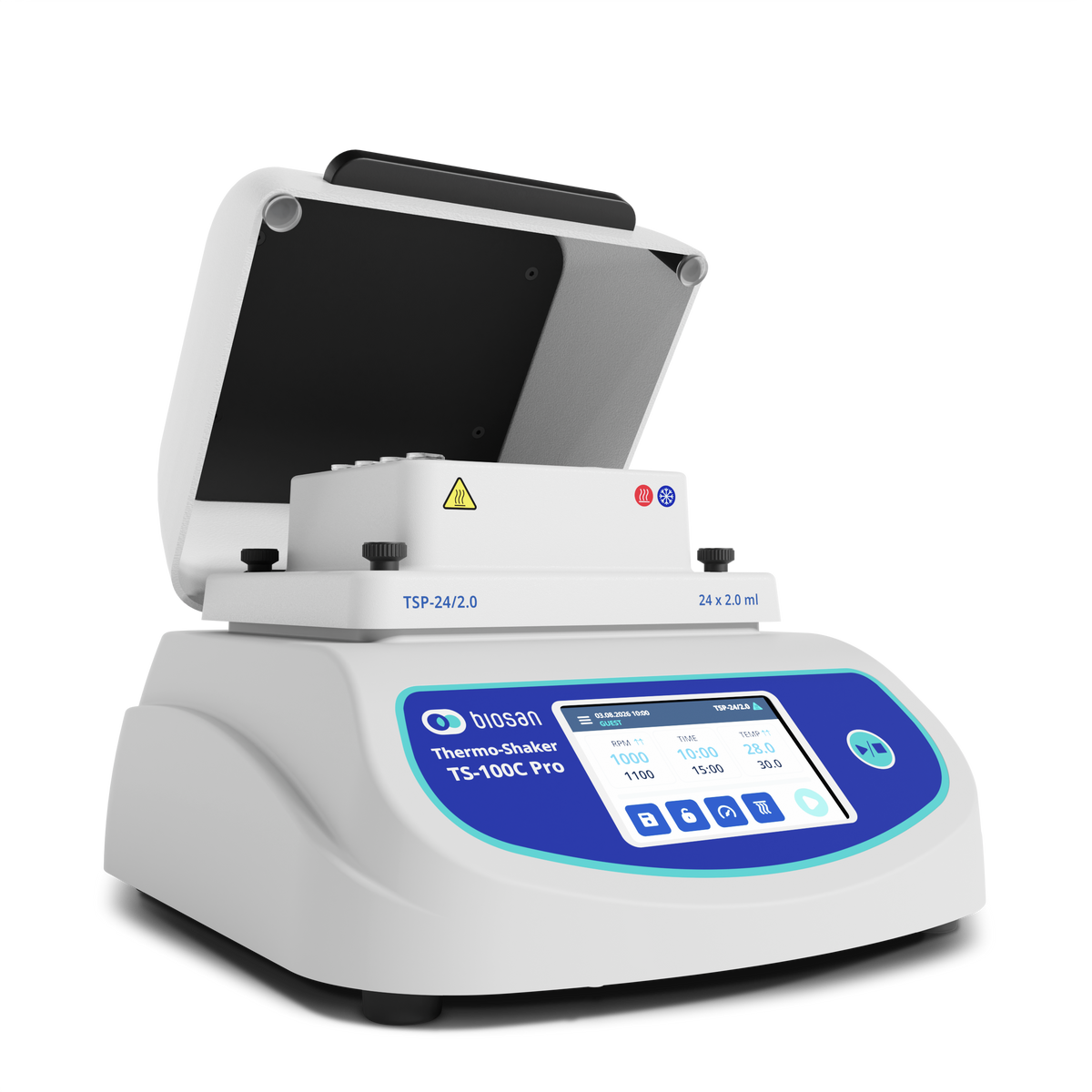

The TS-100C Pro is a programmable laboratory thermo-shaker that combines precise heating and cooling, intensive mixing and interchangeable thermoblocks in one compact instrument.
Designed for repeatable sample-preparation workflows, it allows users to create and save multi-step programs directly on the touchscreen. This reduces repeated manual parameter changes and the need to transfer samples between separate heating, cooling and mixing instruments.

* The system does not come with blocks; these must be ordered separately.

Need more information?

Need more information?

Please fill out the form below and we will get back to you.

  • Heating, cooling and mixing in one instrument for efficient temperature-controlled sample preparation.
  • Mixing speeds up to 2500 rpm support intensive mixing, bead resuspension, extraction and lysis workflows.
  • Automatic thermoblock recognition identifies the installed block and limits the maximum mixing speed accordingly.
  • Quick thermoblock exchange without external tools or separate cable connections reduces setup time between applications.
  • Advanced on-screen programming with up to 20 saved programs and up to 20 steps per program, including holds, repetitions and parameter transitions.
  • Clear touchscreen interface displays set and actual temperature, speed, time and program status at a glance.
  • Quick Mix function starts a short mixing cycle using the selected parameters without creating a complete program.
  • Optional heated lid helps minimise condensation during temperature-controlled workflows. The instrument recognises the lid automatically, while lid heating can be switched on or off as required.
  • Five configurable user profiles and screen lock help protect established methods and prevent unintended changes in shared laboratories.
  • Integrated system and maintenance information provides access to the serial number, firmware version, operating hours, calibration status, service reminders and diagnostics. The operating manual can be accessed using an on-screen QR code.

html

Dimensions (H x D x W) 220 x 250 x 115 mm
Temperature range +4 to 100ºC
Temperature control range 15°C below ambient to +100ºC
Uniformity @4ºC ±0.6°C
Uniformity @37ºC ±0.1°C
Uniformity @100ºC ±0.3°C
Speed (average heat up) from 25ºC to 100ºC 8°C/min
Speed (average cool down) from 100ºC to 25ºC 5°C/min
Speed (average cool down) from 25ºC to 4ºC 1.8°C/min
Shaking speed 250–2500 rpm
Display (temperature) 3.5" TFT, 320x480 px
Capacity Choice of 13 accessory blocks with automatic recognition
Heated lid Optional accessory
Orbit diameter 2 mm
Timer (with auto-off and audible alarm) 1 min–96 hrs / non-stop (increment 1 min)
PC connection USB-C
Programmability Up to 20 saved programmes, 20 steps per programme
User profiles Up to 5 with screen lock
Maximum continuous operation time 168 h
External power supply Input AC 100–240V; 50–60Hz; Output DC 12V
Power consumption 138W
Input voltage 12V DC, 11.5A
Weight 5.1 kg

The TS-100C Pro is suitable for DNA and RNA extraction, NGS library preparation, magnetic-bead cleanup and resuspension, cell lysis, protein extraction, enzymatic reactions, incubation, hybridisation and analytical sample preparation.A range of interchangeable thermoblocks allows the instrument to be configured for different compatible tubes, strips and plate formats.

TSP-20/RB12

Block for heating & cooling. 20x ø12 mm round bottom tubes. Used with the TS-100C PRO

TSP-24/1.5

Block for heating & cooling. 24х 1.5 ml microtubes. Used with the TS-100C PRO

TSP-24/2.0

Block for heating & cooling. 24× 2 ml microtubes. Used with the TS-100C PRO

TSP-96/PCR

Block for heating & cooling. 96-well un/semi sk. Plates. Used with the TS-100C PRO

TSP-20/0.5+12/1.5

Block for heating & cooling. 20× 0.5ml+12× 1.5ml microtubes. Used with the TS-100C PRO

TSP-20/0.2+12/1.5

Block for heating & cooling. 20× 0.2ml+12× 1.5ml microtubes. Used with the TS-100C PRO

TSP-32/0.5

Block for heating & cooling. 32× 0.5ml microtubes. Used with the TS-100C PRO

TSP-8/5

Block for heating & cooling. 8× 5ml conical tubes. Used with the TS-100C PRO

TSP-8/15

Block for heating & cooling. 8× 15ml conical tubes. Used with the TS-100C PRO

TSP-4/50

Block for heating & cooling. 4× 50ml conical tubes. Used with the TS-100C PRO

TSP-20/CV10

Block for heating & cooling. 20× 10mm cuvettes. Used with the TS-100C PRO

TSP-24/CRYO4

Block for heating & cooling. 24× 3.6–4.5ml cryotubes. Used with the TS-100C PRO

TSP-24/CRYO1.8

Block for heating & cooling. 24× 1–1.8ml cryotubes. Used with the TS-100C PRO
