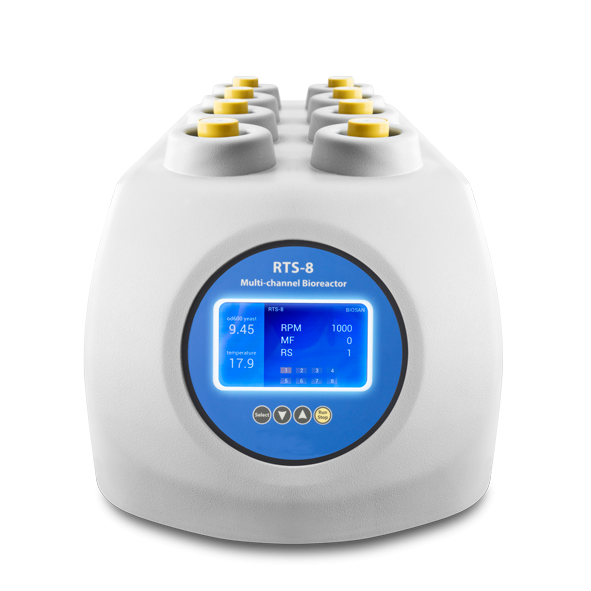

Personal multi-channel bioreactor with non-invasive real time OD measurement

Need more information?

Need more information?

Please fill out the form below and we will get back to you.

RTS-8 is a personal bioreactor that utilizes patented Reverse-Spin® technology that applies non-invasive, mechanically driven, low energy consumption, innovative type of agitation where cell suspension is mixed by the single-use falcon bioreactor tube rotation around its axis with a change of direction of rotation motion resulting in highly efficient mixing and oxygenation for aerobic cultivation. Combined with a near-infrared optical system it is possible to register cell growth kinetics non-invasively in real time.

Features

  • Parallel cultivation of 8 tube bioreactors enables to save time and resources for bioprocess optimization
  • Individually controlled bioreactor accelerates optimization process
  • Possibility to cultivate microaerophilic and obligate anaerobic microorganisms (not strict anaerobic conditions)
  • Reverse-Spin® mixing principle enables non-invasive biomass measurement in real time#
  • Near-infrared optical system makes it possible to register cell growth kinetics
  • Free of charge software for storage, demonstration and analysis of data in real time
  • Compact design with low profile and small footprint for personal application
  • Individual temperature control for bioprocess applications
  • Active cooling for rapid temperature control, e.g. for temperature fluctuation experiments
  • Task profiling for process automatization
  • Cloud data storage to remotely monitor the process of cultivation while at home or using a mobile phone

Software Features

  • Real-Time cell growth logging
  • 3D graphical representation of OD or growth rate over time over unit
  • Pause option
  • Save/Load option
  • Report option: PDF and Excel
  • Remote monitoring option (requires internet connection)
  • Cycling/Profiling options
  • User manual calibration possibility for most cells

Specification Value
Light sourceLaser
Measurement wavelength (λ)850 ± 15 nm
Measurement range0–100 OD600
E.coli factory calibration measurement range0–50 OD600
S.cerevisiae factory calibration measurement range0–75 OD600
Achievable user calibration measurement error (range 0.1–6 OD600)±0.3
Achievable user calibration measurement error (range 6–50 OD600)≤5%
Achievable user calibration measurement error (range 50–75 OD600)≤10%
Measurement periodicity per hour1–60
Temperature setting range+15°C ... +60°C
Temperature control range+15 °C below ambient ... +60 °C
Temperature stability±0.3 °C
Sample temperature accuracy (20°C – 37°C)±1 °C
Tube sockets8
Sample working volume range3–50 ml
Speed control range150–2700 rpm
Reverse spin time setting range 150–250 rpm0 s
Reverse spin time setting range 250–300 rpm2–60 s
Reverse spin time setting range 300–2700 rpm0–60 s
DisplayLCD
Minimum PC requirementsIntel/AMD Processor, 1 GB RAM, Windows Vista/7/8/8.1/10/11, USB 2.0 port
Dimensions (W×D×H)350 × 690 × 300 mm
Weight20 kg
Nominal operating voltageAC 230 V, 50 Hz
Power consumption3.15 A / 500 W

  • Fermentation real time growth kinetics
  • Clone candidate screening
  • Protein expression
  • Temperature stress and fluctuation experiments
  • Media screening and optimization
  • Growth characterization
  • Inhibition and toxicity tests
  • Strain quality control
  • Initial bioprocess optimization studies
