QB Series Dry Block Heating Systems

Designed for flexibility and efficiency the block heaters come with a choice of standard and custom blocks. The versatile dry block heater series are ideal for general sample heating, research or chemistry applications.

A versatile general purpose system with removable/interchangeable blocks and a comprehensive specification to suit most dry block heating applications in the laboratory.

Temperature range ambient +5ºC to 130ºC, with rapid heat-up time
Stability: ±0.1ºC
Uniformity: ±0.1ºC
Digital temperature control for optimal precision
Range of convenient features including alarms, single and dual point calibration, programmed start/stop, 'offset' for known sample temperature variation and choice of external or internal probes
External probe available for accurate in-sample or in-block temperature control
Includes block removal tool for easy and safe removal of blocks.

‍

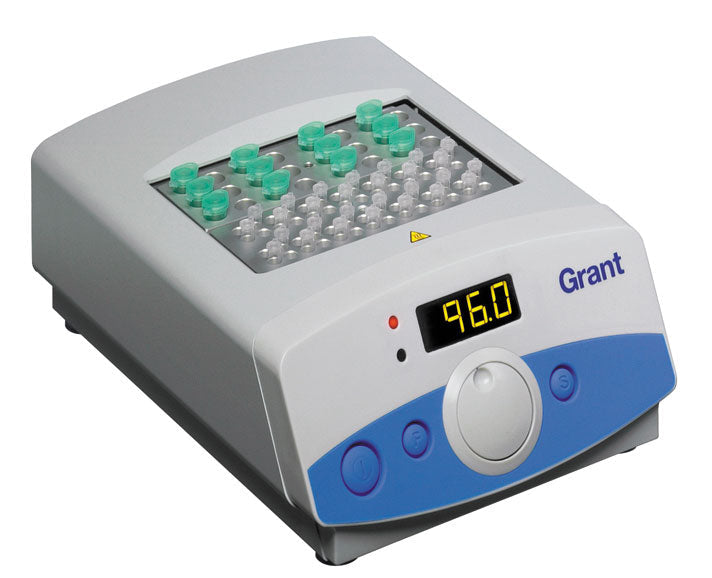

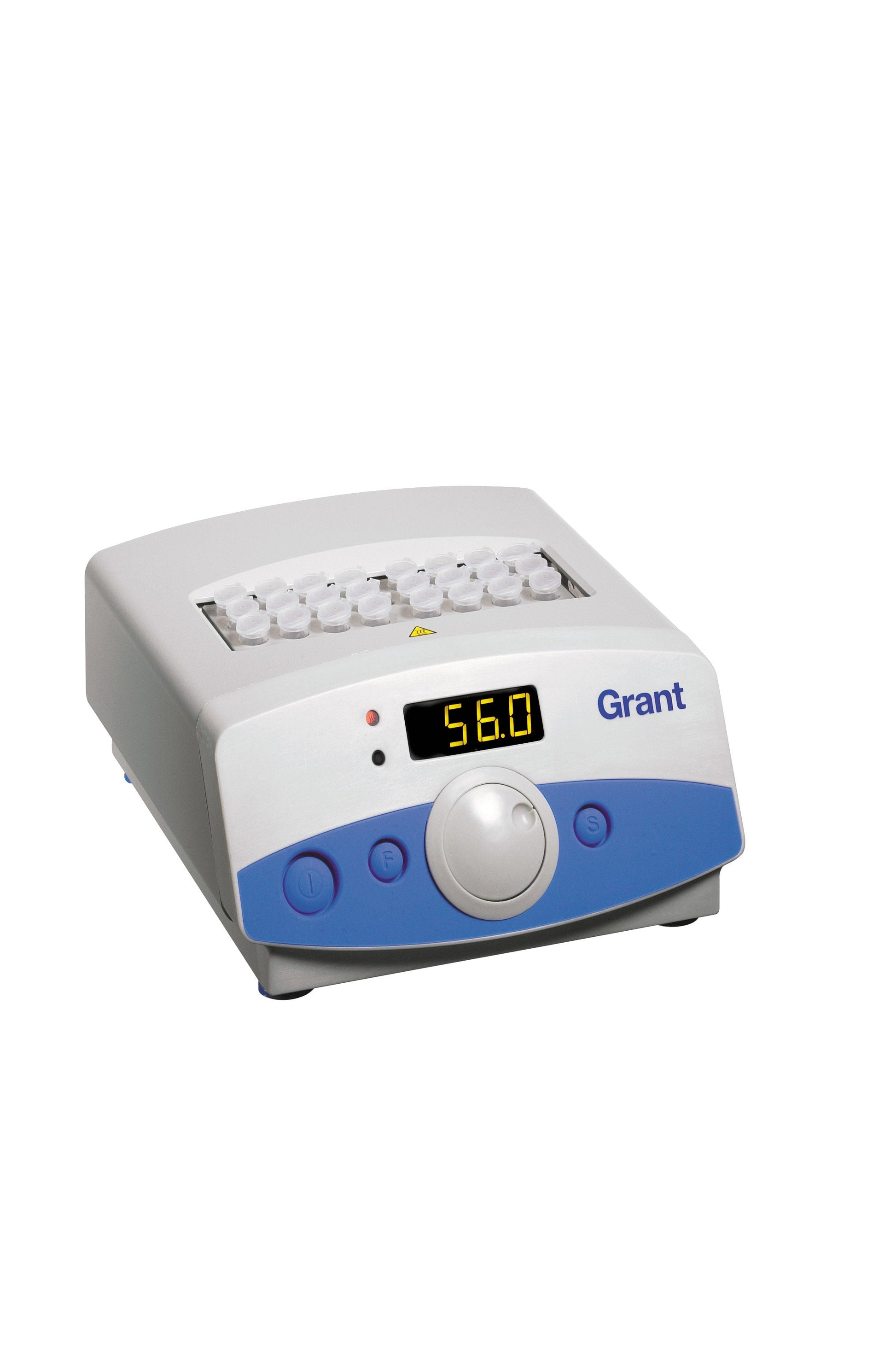

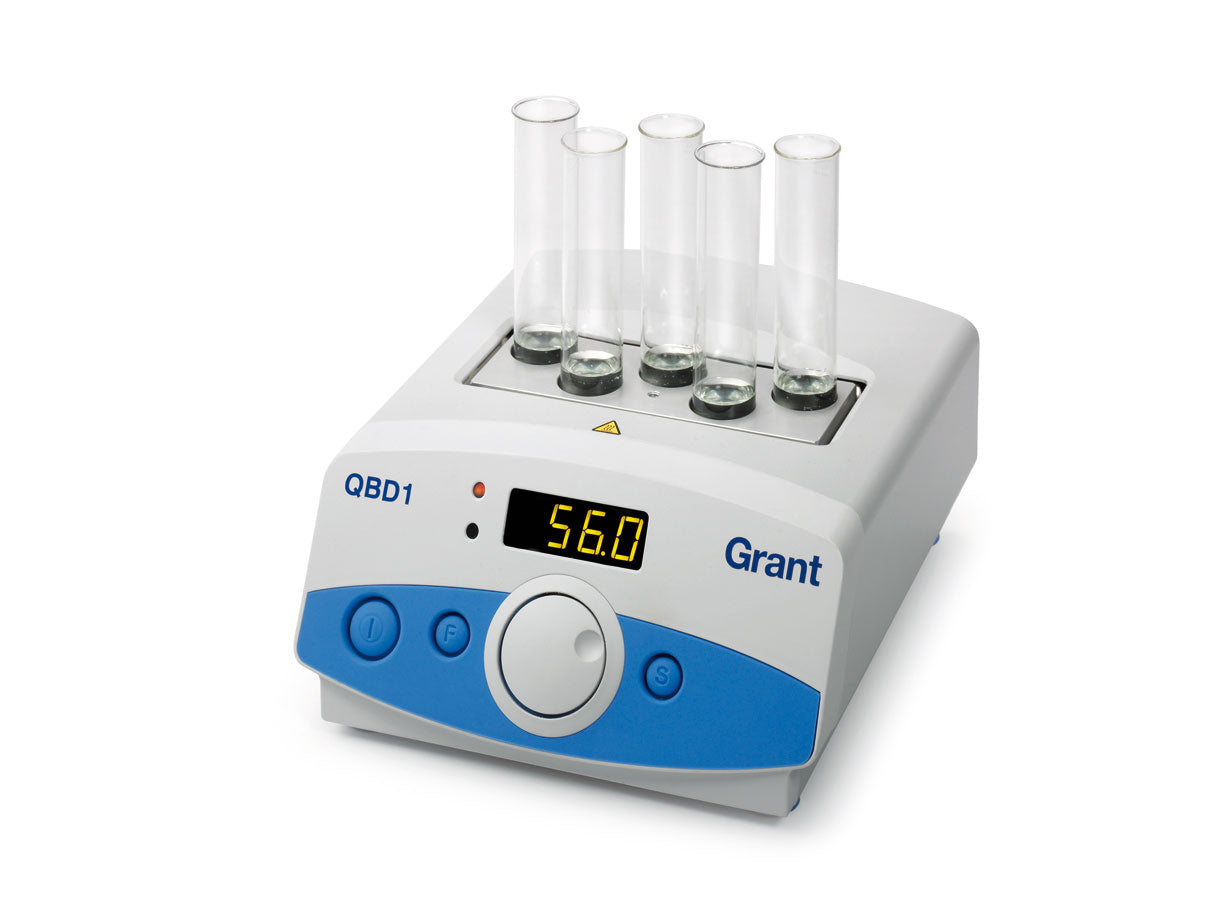

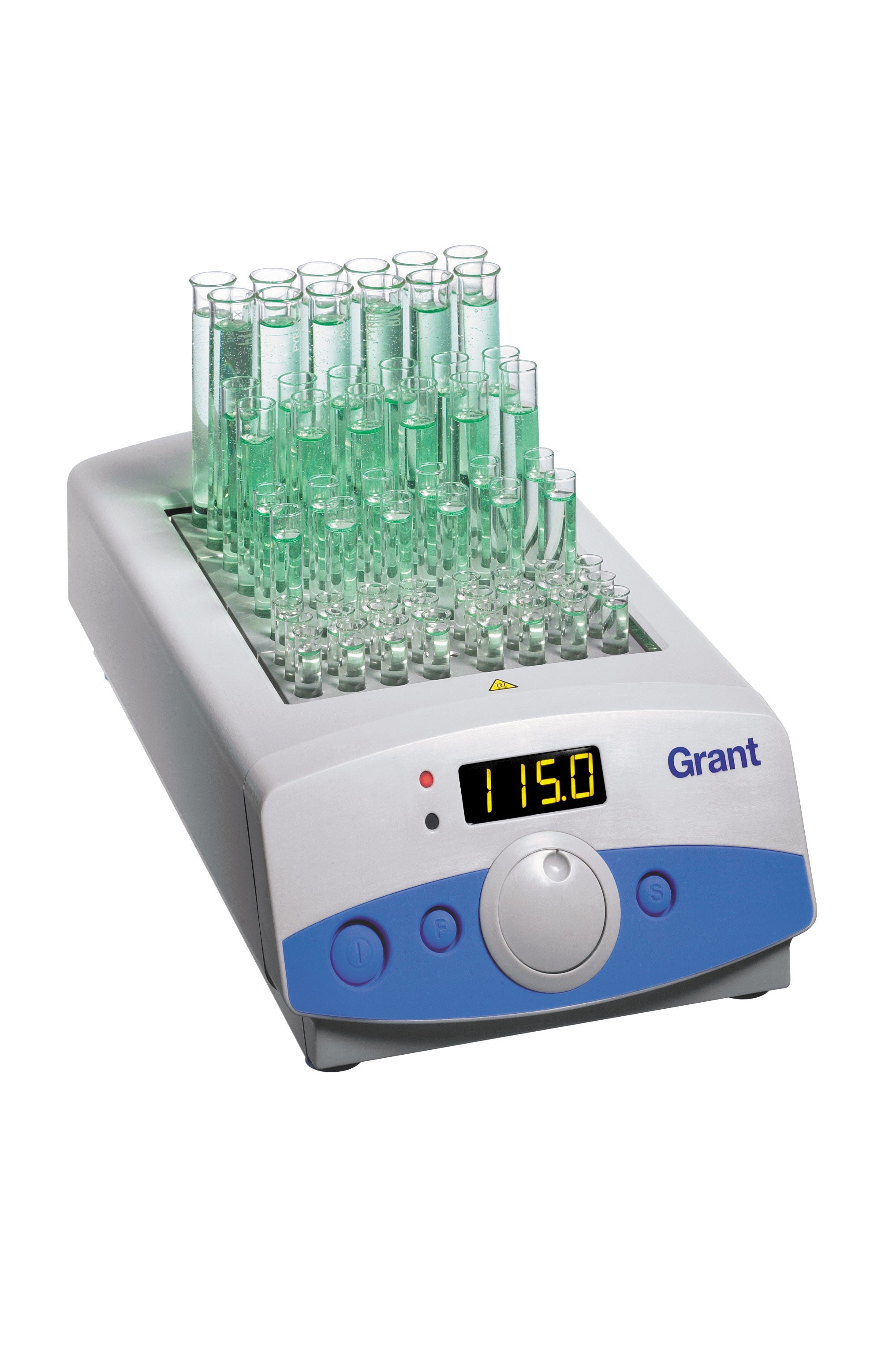

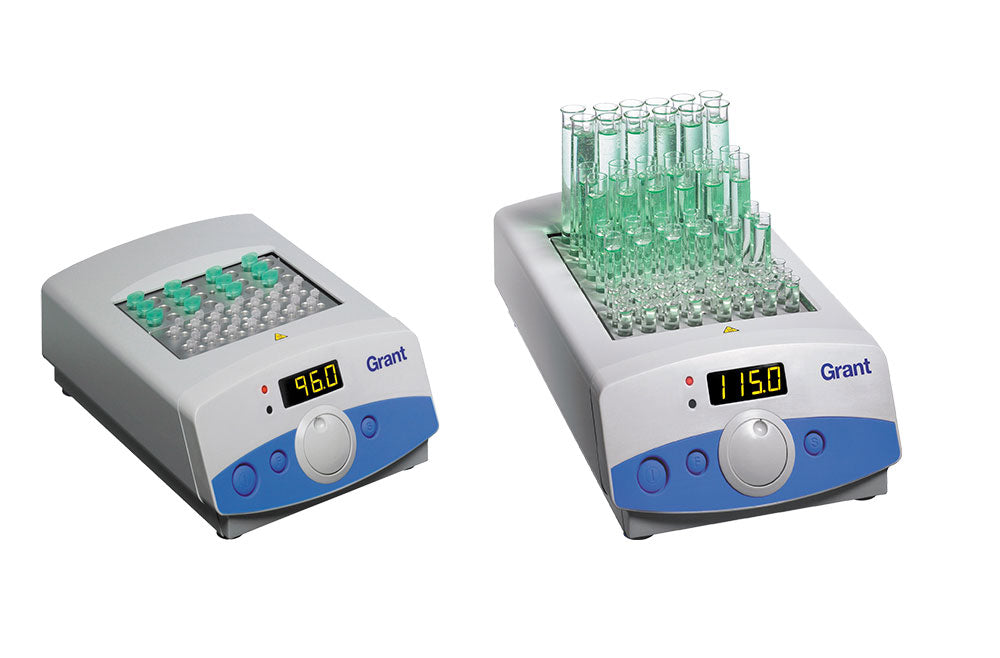

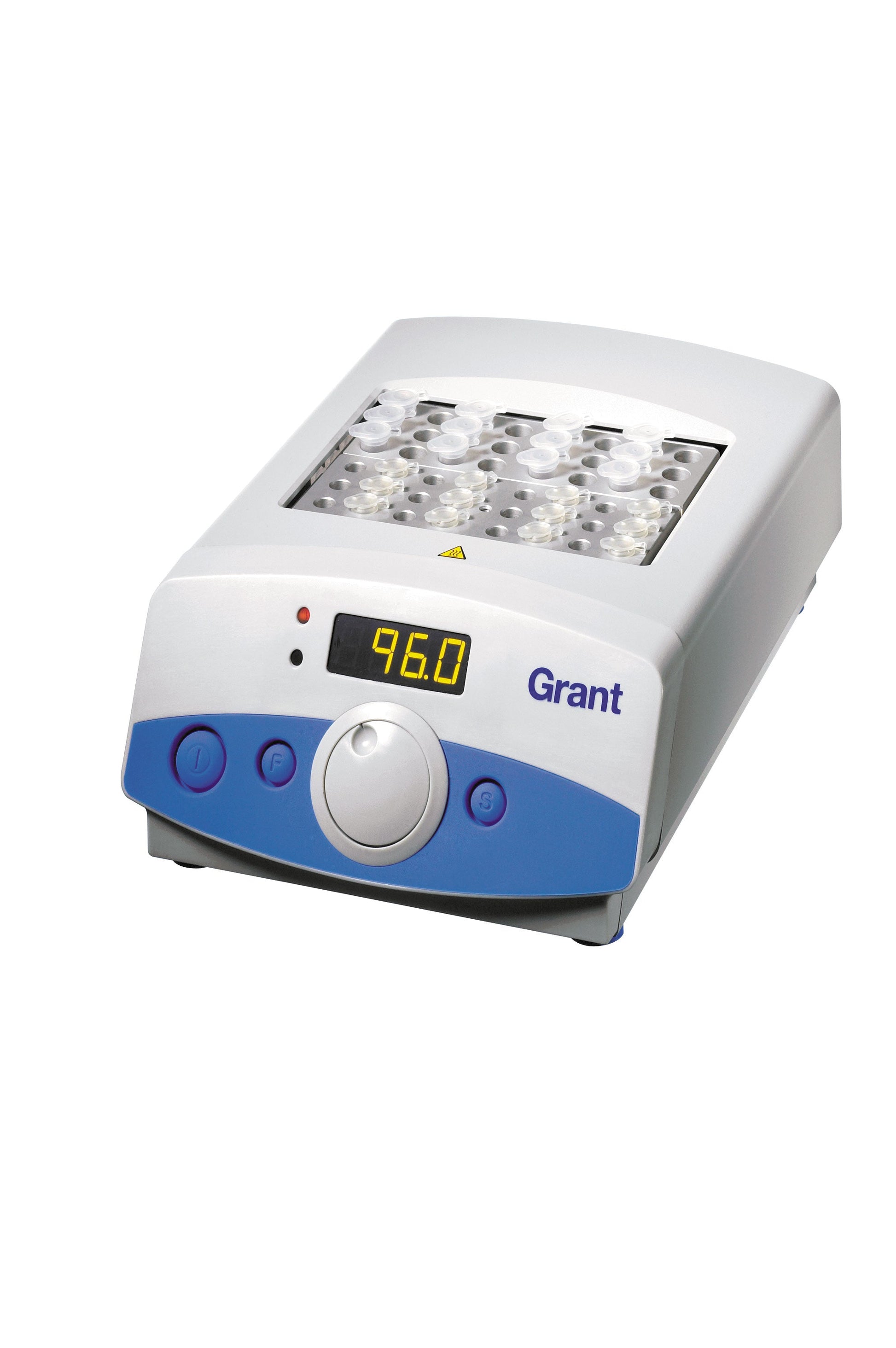

Specification	QBD1	QBD2	QBD4	QBH2
Dimensions (h x d x w)	120 x 240 x 200 mm	120 x 285 x 200 mm	120 x 390 x 200 mm	120 x 295 x 200 mm
Temperature range @37°C	Ambient +5 to 130°C	Ambient +5 to 130°C	Ambient +5 to 130°C	Ambient +5 to 200°C
Stability @37°C	0.1 ± ºC	0.1 ± ºC	0.1 ± ºC	0.1 ± ºC
Uniformity within the block @37°C	0.1 ± ºC	0.1 ± ºC	0.1 ± ºC	0.1 ± ºC
Uniformity across similar blocks @37°C	0.2 ± ºC	0.2 ± ºC	0.2 ± ºC	0.2 ± ºC
Temperature display	•	•	•	•
Display resolution	0.1°C	0.1°C	0.1°C	0.1°C
Heat up time (25ºC to 100ºC)	20 minutes	20 minutes	20 minutes	15 minutes
Three programmable temperature/time segments + end-of-program segments	-	-	-	•
Reaction timer with audible buzzer	1 to 999 minutes	1 to 999 minutes	1 to 999 minutes	1 to 999 minutes
Function timer (delay heater start-up/switch-off)	Up to 72 hours	Up to 72 hours	Up to 72 hours	Up to 72 hours
Off-set adjustment	•	•	•	•
Two-point calibration of internal and external probes	•	•	•	•
High/low temperature alarms (settable to within 0.5ºC)	•	•	•	•
Fault indication display	•	•	•	•
Extraction tool for block removal	•	•	•	•
Safety	Thermal fuse	Thermal fuse	Thermal fuse	Thermal fuse
Heater power (230V)	150 W	300 W	600 W	300 W
Heater power (120V)	100 W	200 W	400 W	200 W
Supply voltage	120 or 230V	120 or 230V	120 or 230V	120 or 230V
Weight	2.2 kg	2.7 kg	3.6 kg	3 kg

A source of precision temperature control for general, routing applications and sensitive analytical procedures including enzyme digestions, enzyme activity studies and nucleid acid hybridisations.

Product Manuals

32331v1-QBA-QBD-QBH-Block-Heater-Operating-Manual-ML

Technical Datasheets

No downloads available

Further Information

Dry Block Heaters

Blocks

QB-0

Plain block without holes

QB-10

For 24 x ø 10mm test tubes, 50mm hole depth

QB-12

For 24 x ø12mm test tubes, 50mm hole depth

QB-13

For 12 x ø13mm test tubes, 50mm hole depth

QB-16

For 12 x ø16mm test tubes, 50mm hole depth

QB-17H

For 10 x Falcon tubes tall 17mm ø test tubes, 75mm hole depth

QB-18

For 12 x ø18mm test tubes, 50mm hole depth

QB-24

For 5 x ø24mm test tubes and universal bottles, 50mm hole depth

QB-50

For 4 x 50ml centrifuge test tubes, glass universals, 50mm hole depth ø29mm

Microtube Blocks

QB-H

For 56 x 0.2ml microtube, 14mm hole depth, ø6.5mm

QB-E0

For 24 x 0.5ml microtube, 30mm hole depth, ø8mm

QB-E1

For 24 x 1.5ml microtube, 35mm hole depth, ø10.8mm

QB-E2

For 24 x 2.0ml microtube, 35mm hole depth, ø11mm

Microplate Blocks

Double-size blocks 140 x 100 x 75mm supplied with additional extraction tool

QDP-H - Microplate Block

96 holes in microplate configuration for 0.2ml microplates, strips or individual tubes. Uniformity ± 0.3ºC within tubes across the block; 6.2mm ø holes, 14mm hole depth.

QDP-FL - Microplate Block

Universal block for standard 96-well plates (u-well, v-well, flat bottom, high temperature). Uniformity ± 0.50ºC between wells; supplied with hinged, double layer lid to create an insulated incubation chamber.

Probes

QBEP

Standard external temperature probe for in-sample or
in-block temperature control; encased in stainless steel sheath, ø3mm x 30mm long, with 350mm of cable.

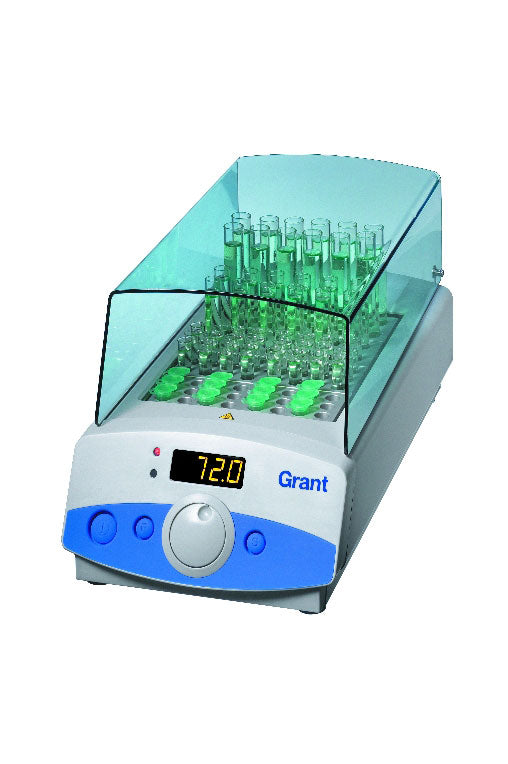

Lids

Lid clearance height 85cm. Not required with QDP-FL Microtiter blocks.
