PSU-20i Orbital Shaking Platform

£1,841.00
£1,841.00
Shipping calculated at checkout.

Orbital platform shaker PSU-20i is a benchtop multifunctional shaking unit.

Need more information?

Need more information?

Please fill out the form below and we will get back to you.

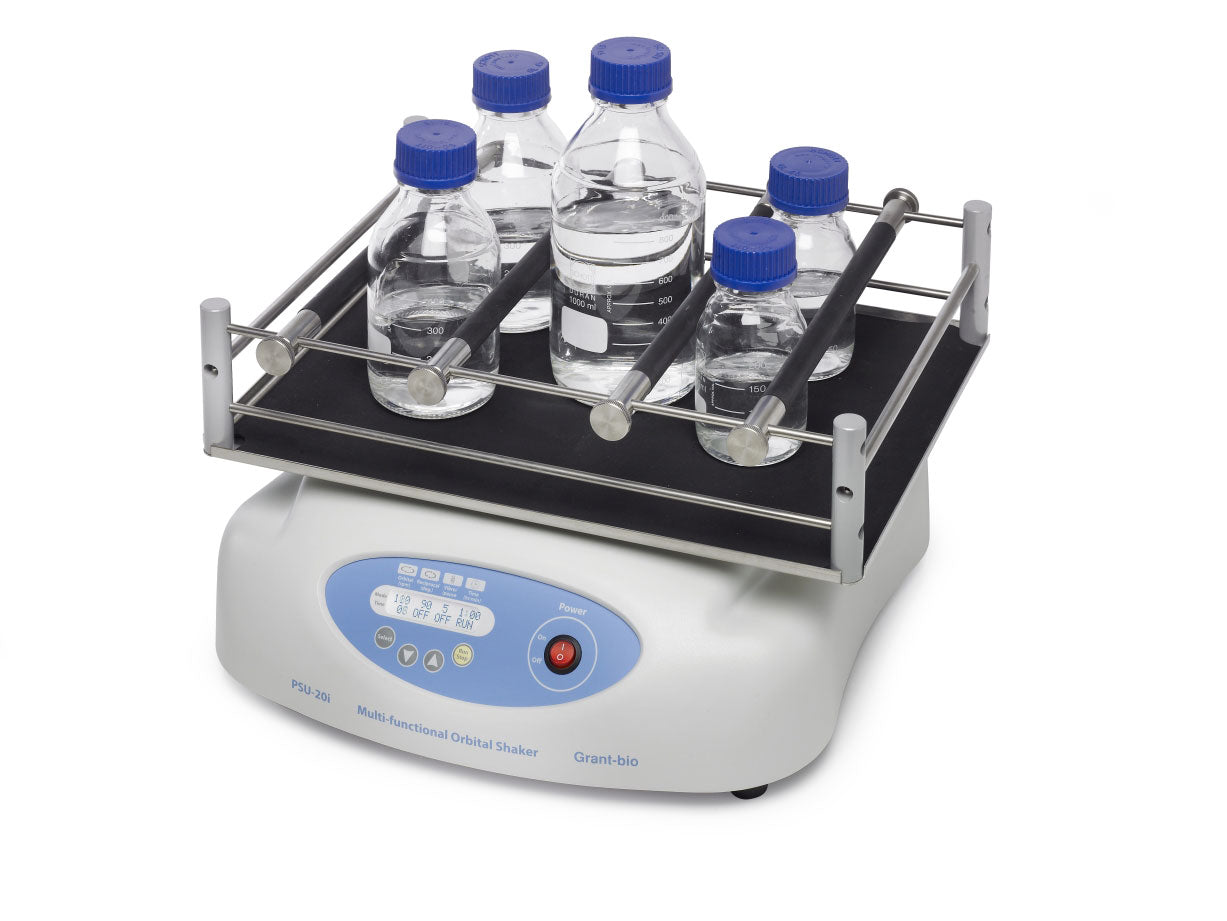

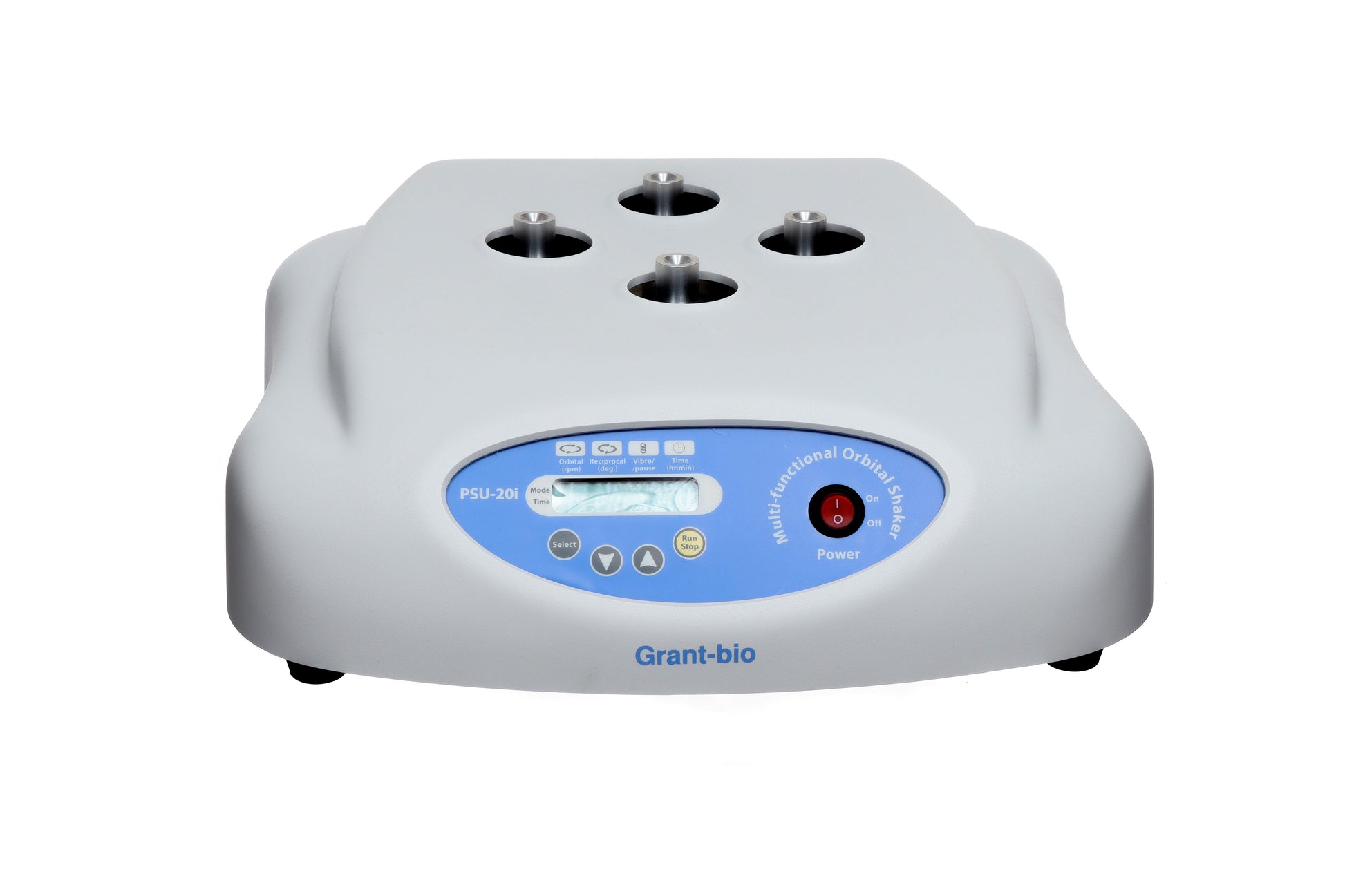

The Grant bio PSU-20i is a powerful and efficient microprocessor controlled multi-functional orbital shaker providing all that is required – rotation, reciprocation and vibration – for thorough mixing in flasks, beakers, Petri dishes and other laboratory vessels.

  • Orbital motion, reciprocation and vibration functions all in one product
  • Reliable direct drive system
  • Fully programmable sequence of functions
  • Simple to set up and easy to operate
  • Interchangeable platforms, including multi-level platform option
  • Loads up to 8 kg
  • Orbital and reciprocating speed: 20 to 250 rpm
  • Reciprocal rotation: 30 to 360º turning angle
  • Vibration: 0 to 5º turning angle, programmable in a burst of 0 to 5 seconds
  • All mixing functions – orbital motion, reciprocation and vibration – can be set for continuous or timed operation, or be linked together in different combinations to ensure optimum and accurately repeatable mixing conditions for your application
  • Direct drive system
  • Brushless motor for longetivity
  • Powerful, reliable and exceptionally quiet motor –  combines 8 kg loading capacity with consistent even motion and quiet operation
  • Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display. Microprocessor controls for making corrections without stopping the program.
  • Universal detachable platform can accommodate vessels of different shapes and sizes for maximum flexibility.
  • Optional flat platform PP-20 with non-slip mat accommodates low profile containers. Can be extended to create up to four levels to maximise the throughput per cycle.

‍

Specification Details
Dimensions (h x d x w) 130 x 410 x 410mm
Temperature range 4 to 40ºC
Maximum load 8kg
Orbit ø 20mm
Speed (load dependent) 20 to 250rpm
Angle (reciprocal mode) 0 to 360º
Angle (vibration mode) 0 to 5º
Display 2-line 16 character LCD
Timer, with automatic switch-off 1 minute to 96 hours
Motion timer (orbital/reciprocal modes) 0 to 250sec
Motion timer (vibration mode) 0 to 5sec
External power supply Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 40W (3.2A)
Input voltage 12V dc
Weight 11.7kg

  • Suitable for use in different laboratories in microbiology, chemistry, immunology, biochemistry and molecular biology.
Product Manuals
Technical Datasheets

No downloads available

Further Information
PUP-330

Adjustable bars and two fixing levels. Dimensions*: 300 x 400 x 80 mm. Extra holding bars - HB-330. (* Working area dimensions)

PP-20
PP-20-1
PP-20-2
PP-20-3
PP-20-4

Flat platform with non-slip rubber mat. Dimensions*: 365 x 465 mm. Height between levels: 140mm

P30-100

Platform with clamps for 30 x 100-150ml flasks. Dimensions*: 360 x 400 mm

P16-250

Platform with clamps for 16 x 250-300ml flasks. Dimensions*: 360 x 400 mm

P9-500

Platform with clamps for 9 x 500ml flasks. Dimensions*: 360 x 400 mm

P6-1000

Platform with clamps for 6 x 1000ml flasks. Dimensions*: 360 x 400 mm

UP-168

Universal platform for flasks clamps. Dimensions*: 360 x 400 mm

TR-21-50

Adjustable tilt test tube rack for 21x 50ml tubes

TR-44-15

Adjustable tilt test tube rack for 44x 15ml tubes
