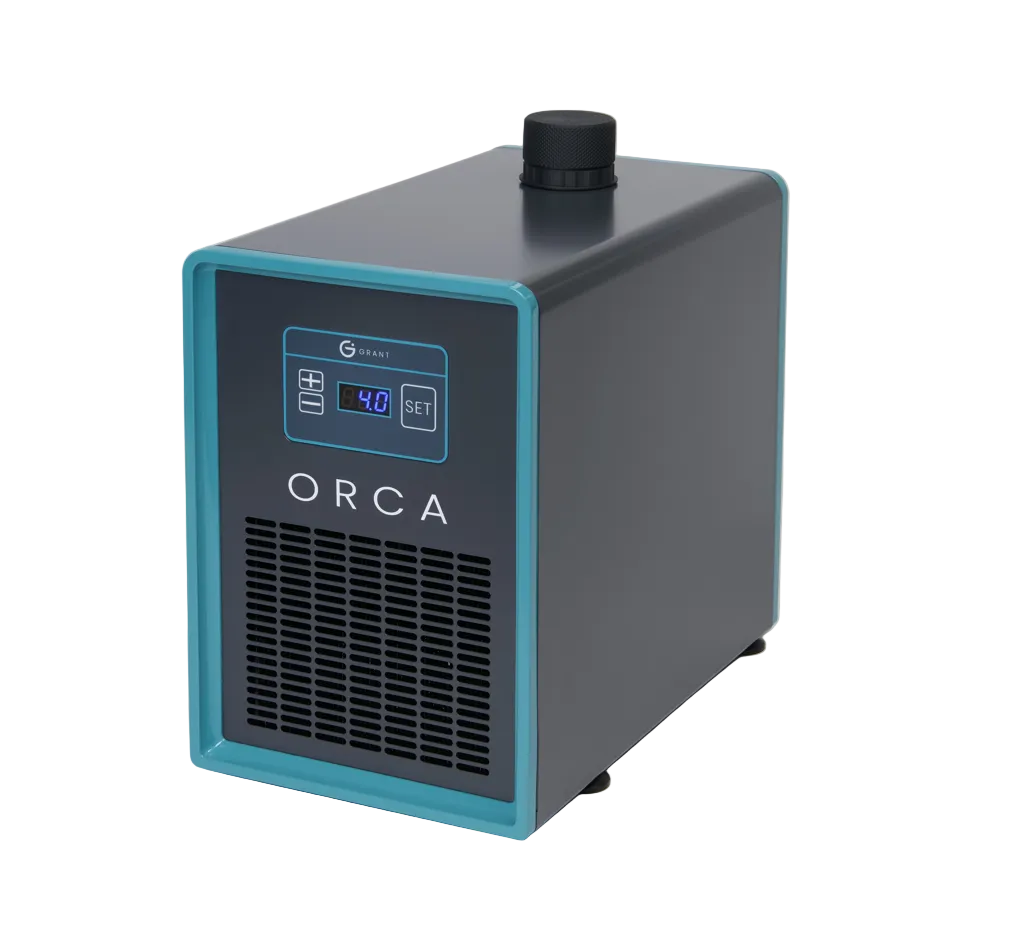

ORCA device with digital display on a white background
ORCA device with digital display on a white background

ORCA Closed Loop Refrigerated Recirculating Circulator | Advanced Refrigerated Circulator

£2,995.00
£2,995.00
Shipping calculated at checkout.

Grant ORCA closed‑loop refrigerated circulator is a sustainability‑focused, energy‑efficient recirculating chiller designed to replace wasteful tap‑water cooling in laboratories. Delivering precise, stable cooling from –10 °C to 40 °C, ORCA uses adaptive refrigeration technology to automatically match cooling power to heat load, reducing energy use and heat rejection into the lab. Compact, quiet, and easy to integrate, ORCA is ideal for reaction chemistry, condensers, rotary evaporation, analytical instruments, bioreactors, and fermentation vessels, helping laboratories cut water consumption, lower utility costs, and meet sustainability targets

*6-8 weeks delivery

Need more information?

Need more information?

Please fill out the form below and we will get back to you.

  • Perfectly designed to replace tap water-based cooling solutions in labs and slash utility spend
  • Energy efficient, adaptive cooling – cooling power adapts to varying heat load conditions across a range of -10 to 40°C
  • Easy to use and intuitive interface. No training required
  • System exhausts less heat to the room, reducing demand on HVAC
  • Effective cooling control with excellent stability of ±0.1°C
  • Easy integration - compact design with a range of accessory connectors and hosing kits
  • Peace of mind - 3-year warranty and high quality, manufactured in the UK
  • Very quiet 49dB operation
  • New modern, eye-catching design to stand out in labs
  • UK designed and manufactured to the highest specifications

Specification Unit Value
Dimensions cm (wdh) 260 x 450 x 400
Capacity L 1.7
Temperature Range °C -10 to 40
Stability ±°C 0.1
Setting Resolution °C 0.1
Cooling Power @20°C W 300
Cooling Power @10°C W 180
Cooling Power @0°C W 80
Flow Rate (max) L/min 15
Pump Pressure (max) mbar 450
Pump Connection 2x Female ½” BSP fittings
Min/Max Fluid Levels mm 120/130
Timer min 1-999 with audible alarm
Safety High temperature warning alarm
Level Protection Low level float protection
Weight kg 20
Noise dB 49
Electrical Supply V, Hz 230, 50-60 or 120, 60
Regional Options UK, EU & US cord sets
Warranty years 3

  • Ideal for reaction chemistry, condensers, reflux, solvent extraction and Soxhlet systems
  • Replaces high‑cost tap‑water cooling with closed‑loop
  • precision for better accuracy and reproducibility
  • Cooling for analytical instruments, biological workflows, optics and general temperature control
  • Temperature control of bioreactors and fermentation vessels
  • Great for facilities aiming to cut water use and meet sustainability standards such as LEAF
Product Manuals
Orca Product Overview

Hosing
HOSE10

10mm hose kit or the ORCA

Includes 2x 2m hose (ID 10mm, 14.5mm OD), 2x 2m insulation, 4x hose clips and 2x hose barbs (2x 1/2” male to 10mm barb (1/2” to 3/8”))

HOSE13

13mm hose kit for the ORCA

Includes 2x 2m hose (ID 13mm, 19mm OD), 2x 2m insulation, 4x hose clips and 2x hose barbs (2x 1/2” male to 13mm barb (1/2” to 1/2”))

C1-2M-10

2x 1/2” male to 10mm OD push fit for semi rigid tubing, not supplied by Grant

C1-2M-12

2x 1/2” male to 12mm OD push fit for semi rigid tubing, not supplied by Grant

SC1-2M-10

2x 1/2” male to 10mm OD with 90° swivel elbow push fit for semi rigid tubing, not supplied by Grant

SC1-2M-12

2x 1/2” male to 12mm OD with 90° swivel elbow push fit for semi rigid tubing, not supplied by Grant

S1-2M-M161C

2x Connector to attach to free fitting, cone tipped hosing 1/2" BSP male to M16-1 male (cone)
