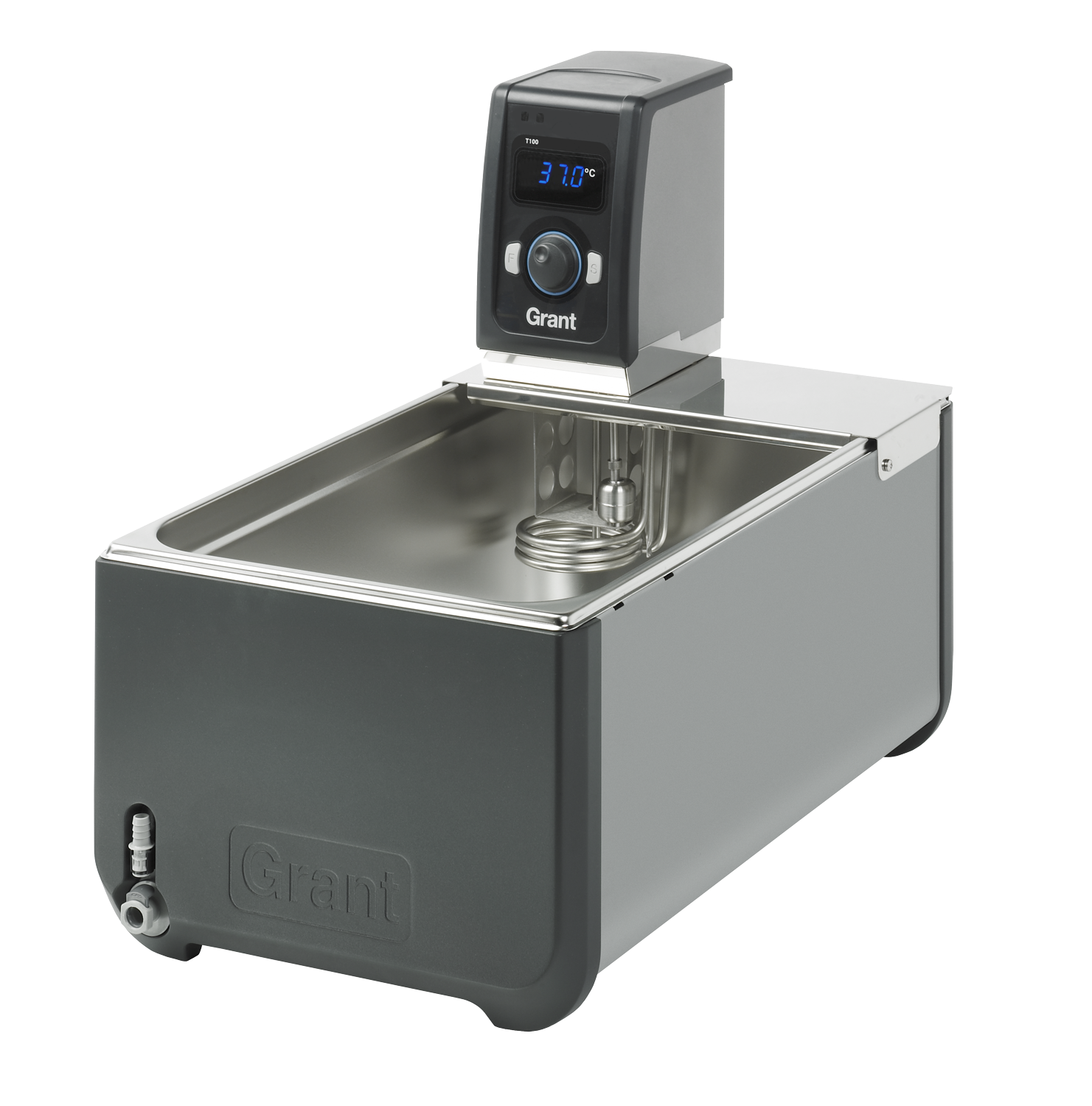

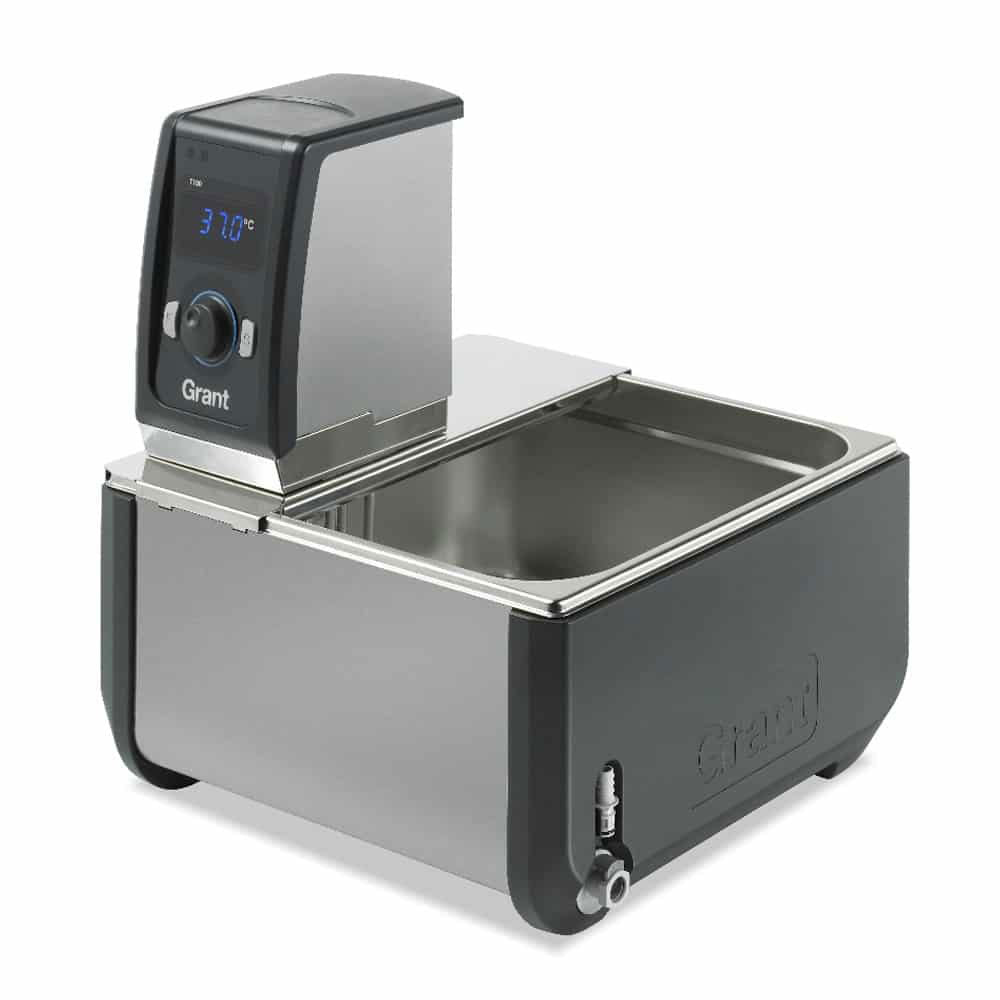

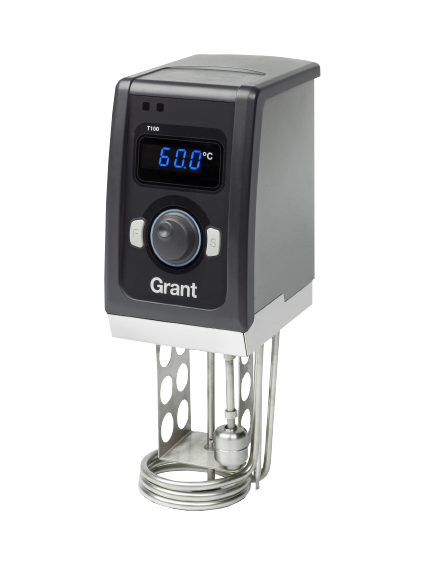

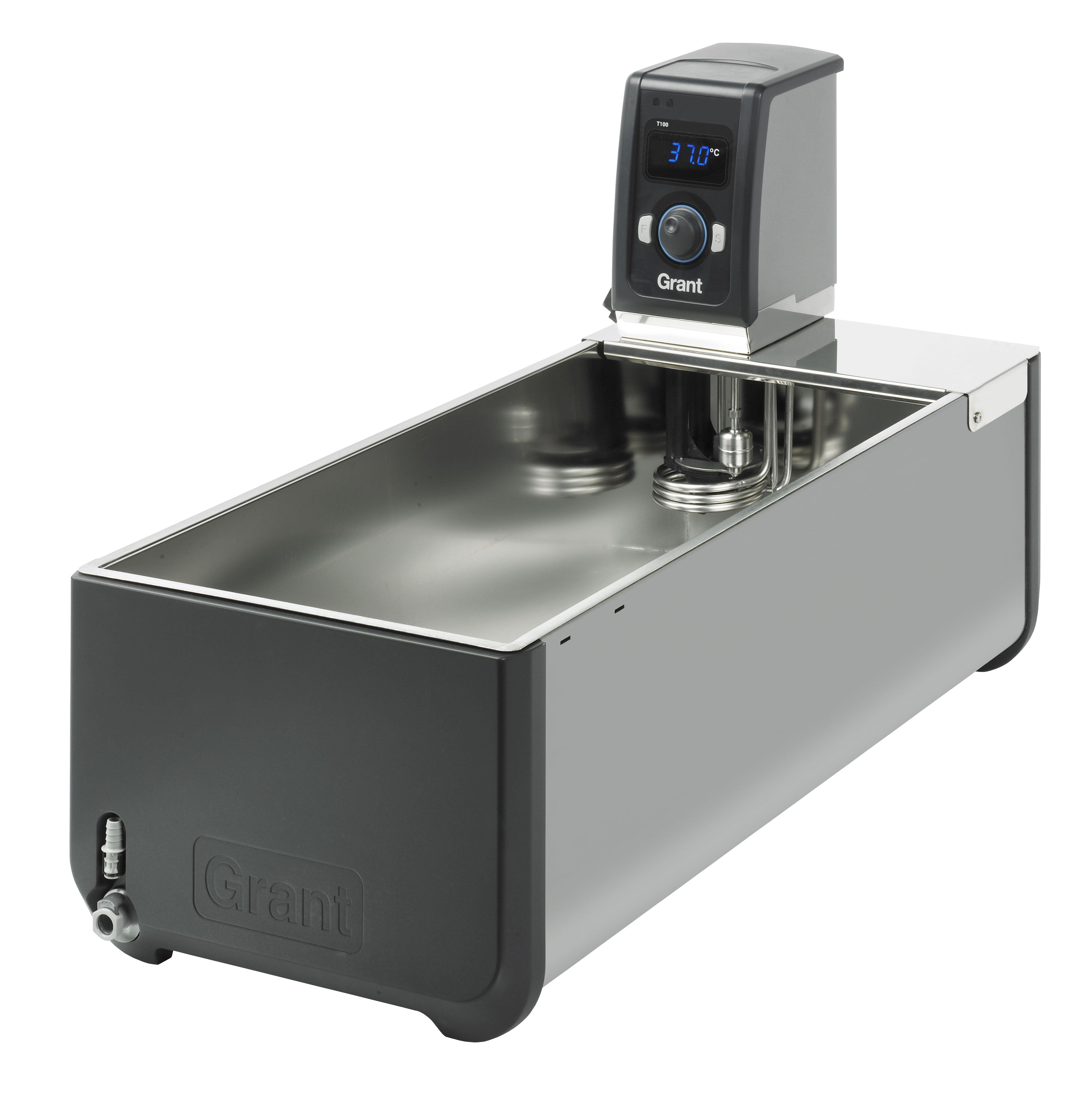

The T100 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.
.png)
C1GR
Optional accessory cooling system: 0ºC to40ºC**
C2GR
Optional accessory cooling system: -15ºCto 40ºC***
* The cooling coil can be continuously immersed in liquids up to 100ºC with the cooler switched off and may be used to cool liquid down from 100ºC but it is not designed for continuous operation above 40ºC
** Minimum operating temperature without accessory cooling is ambient +5ºC (amb.+ 15ºC for ST5 tanks)
T-BTS
Bridge plate replacement fits T Optima heating circulator models to ST5 tank
T-BTL
Bridge plate replacement fits T Optima heating circulator models to ST12, 18, 26 & 38 tanks
T-CLAMP
Allows heating circulator to be attached to virtually any vertical sided vessel with a maximum wall thickness of 35mm for rectangular tanks, 30mm for circular tanks (300mm diameter), and capacity up to50L

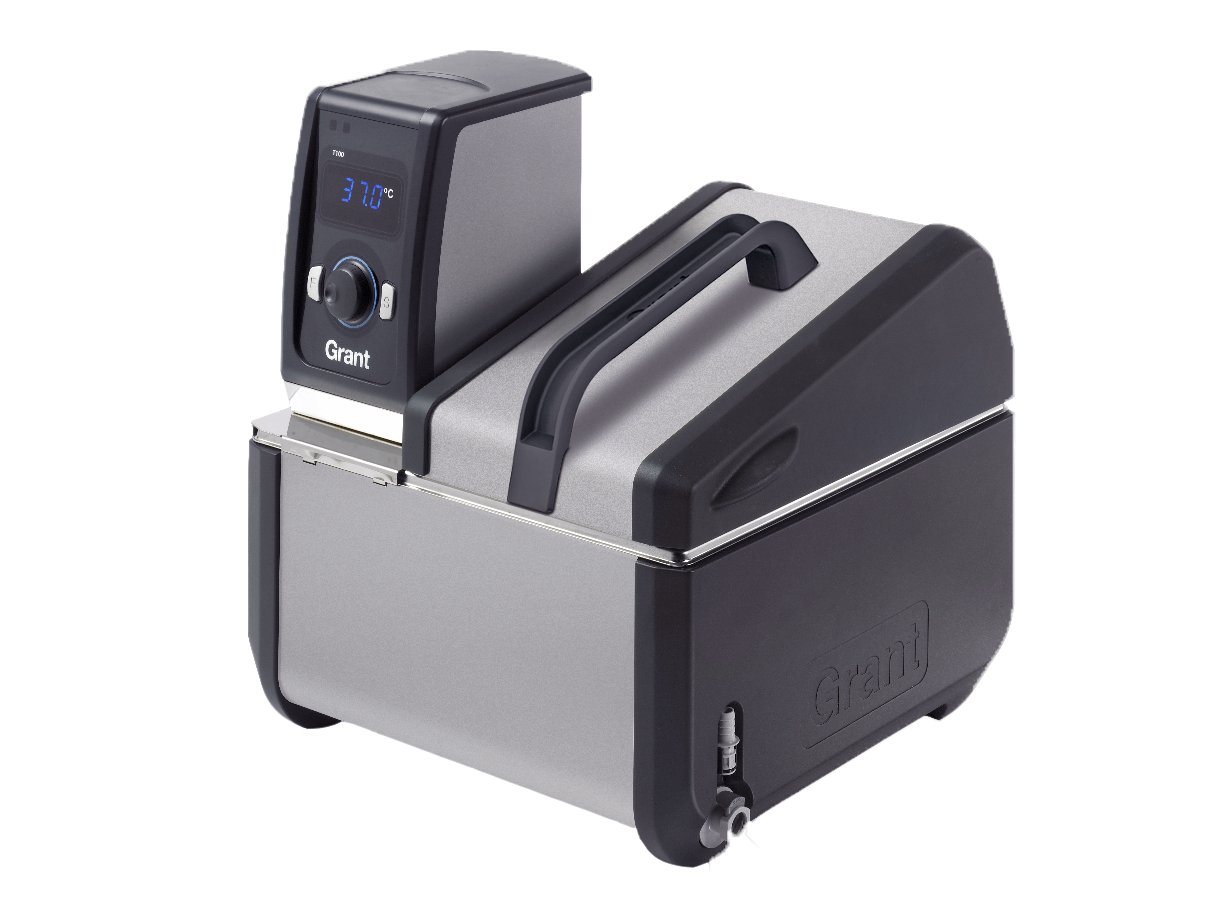

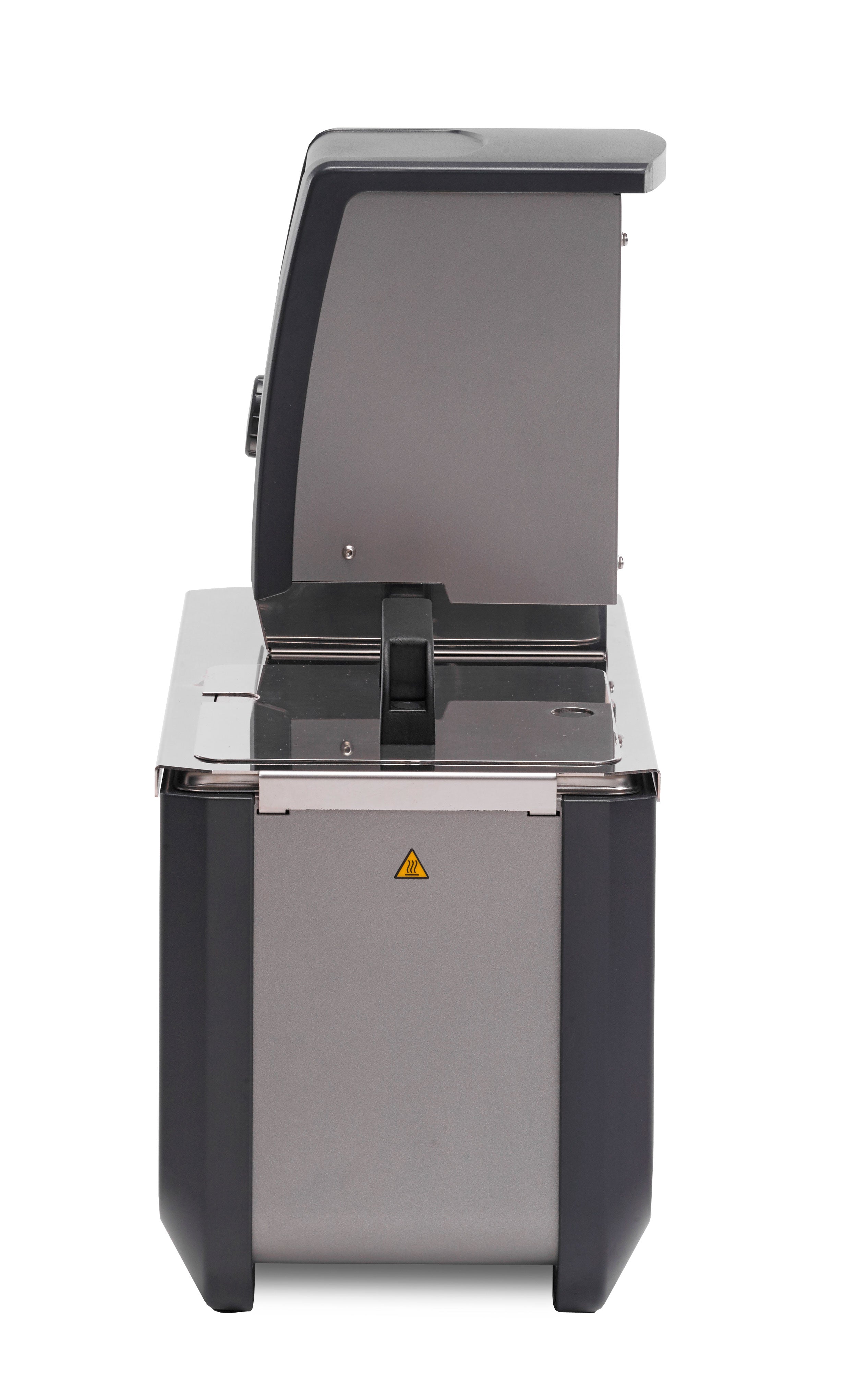

STL5
Flat stainless steel lid for 5L bath
STL12
Gabled, hinged (removable) stainless steel lid for 12L bath
STL26
Gabled, hinged (removable) stainless steel lid for 18L and 26L bath
STL38
Gabled, hinged (removable) stainless steel lid for 38L bath
LST12
Lid pitched lift-off s/s for ST12 baths, recommended when bath is used constantly with water above 90°C
LST26
Lid pitched lift-off s/s for ST18/26 baths, recommended when bath is used constantly with water above 90°C
LST38
Lid pitched lift-off s/s for ST38 baths, recommended when bath is used constantly with water above 90°C
Accessory Notes
Between operating temperatures 60ºC and 100ºC and below room temperature a lid or layer of polypropylene spheres should be used.
VR-13 bath rack
65xØ10-13 mm tubes
VR-19 bath rack
36xØ16-19 mm tubes
VR-24 bath rack
23xØ24 mm tubes
VR-30 bath rack
14xØ30 mm tubes
VR-SE bath rack
102x0.5 ml tubes
VR-LE bath rack
75x1.5ml tubes
QR-13 bath rack
30xØ10-13 mm tubes
QR-19 bath rack
16xØ16-19 mm tubes
QR-24 bath rack
10xØ24 mm tubes
QR-30 bath rack
5xØ30 mm tubes
QR-SE bath rack
44x0.5 ml tubes
QR-LE bath rack
35x1.5 ml tubes
Number of racks accommodated in stainless steel baths:
5 litres: 1 x QR;12litres: 2 x VR; 18 litres: 4 x VR; 26 litres: 4 x VR; 38 litres: 6 x VR
SANIT1
4x 1L bottles of liquid sanitiser. Measuring cup included.
PS-20
Pack of 300 polypropylene spheres. Packs per bath: 1 x 5/12L, 2 x 18/26L, 3 x 38L
P-M6
Replacement plastic pump inlet/outlet connector. Fits tubing 9mm inner dia. Temperature range -50 to 200ºC
P-M11
Replacement plastic pump inlet/outlet connector. Fits tubing 15mm inner dia. Temperature range -50 to 200ºC
RS14
Raised shelve for 12L bath
RS22
Raised shelve for 18L bath
RS28
Raised shelve for 26L or 38L bath
RS38
Raised shelve for 38L bath
Vertical turbine pump fits ST5, 1000mbarpressure (120V please enquire)
Vertical turbine pump fits ST12, 1000mbarpressure (120V please enquire)
Vertical turbine pump fits ST18 & ST26,1000mbar pressure (120V please enquire)
Vertical turbine pump fits ST5, 1650mbarpressure (No 120V)
Vertical turbine pump fits ST12, 1650mbarpressure (No 120V)
Vertical turbine pump fits ST18 & ST26,1650mbar pressure (No 120V)
Required only where application demands a higher pressure than that delivered by the internal pump to maintain flow.
