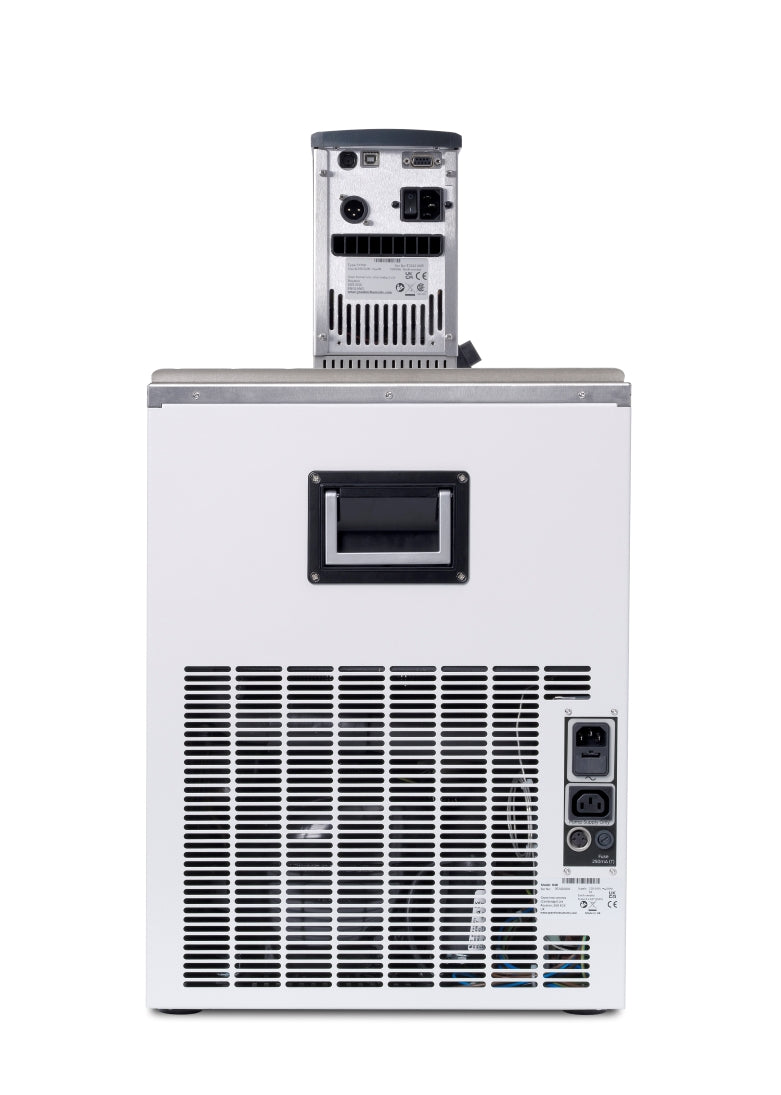

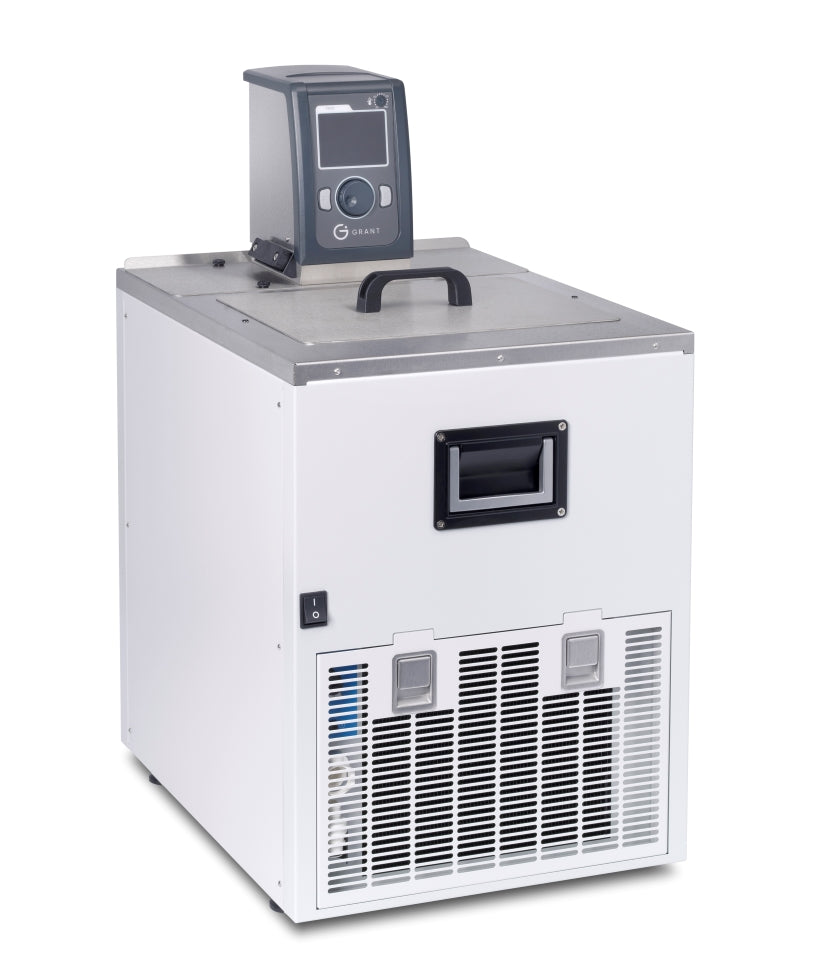

LTC4R Refrigerated Circulating Bath

The Grant LTC4R provides outstanding performance for routine and sophisticated applications requiring accurate temperature control in the range of -30 to 100°C. The LTC4R includes the TX150 heating circulator and an R4R tank/refrigeration unit, complete with insulated tubing and clips to form a system ready to use.

The TX150 Optima™ is high-performance programmable digital heating circulator with an exceptionally simple user interface. This allows fast set-up of multiple parameters through a powerful menu system and provides sophisticated control for temperature-controlled applications.

USB connectivity is available to a PC or laptop. It is programmable with Labwise™ PC software, a software program to set all parameters, including programs, via the PC. Labwise™ also features real-time status windows, a graphic display of the controller's performance as a program is run, and allows data to be logged for future recall and analysis.

• Powerful pump for external circulation, maximum flow 18 L/min, maximum pressure 310 mbar
• Full colour QVGA TFT display
• Setpoint, plus three adjustable preset temperature values
• Timer function for reaction timing, 99 hours, 59 minutes, with audible alert and heater control
• Liquid selection safety feature adjusts for temperature range or heater power
• Fault indication display
• Programmable relay
• Two-point user recalibration of internal and external probes (PEP, SEP)
• Off-set adjustment for optimal isothermal performance
• Can be programmed to switch the refrigeration on and off during a heating and cooling program
• Memory capacity for one program of up to 30 segments
• Choice of languages: English, French, German, Spanish and Italian
• Low liquid protection by float switch
• Adjustable over-temperature cut-out
• Convenient accessory clamp available for fitting to vessels
• Stability ± 0.1°C

Note: The refrigeration unit can be switched off independently of the circulator to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.

‍

Input to enable switching of the cooling system by an external device (typically a Grant Advance Optima).

• University research/teaching - temperature control of external equipment including spectrophotometers & refractometers
• Circulation of temperature control fluid to jacketed vessels, cooling crystallisation vessels
• Industrial laboratories - temperature probe calibration, product testing, product QC, temperature control of external equipment

Product Manuals

• LTC4R Manual_EN

Technical Datasheets

No downloads available

Further Information

• Refrigerated and Heating Circulators and Chillers



Fluids

DEIOWATER

5L container of deionised water

WG8020

5L container of water and ethylene glycol – 80:20mix. For use over the temperature range of 0 to 30C

WG5050

5L container of water and ethylene glycol – 50:50 mix. For use over the temperature range of -30 to 30C

SF50CS

5L container of Silicone Fluid - 50cS. For use over the temperature range of 70 to 200C

SF20CS

5L container of Silicone Fluid - 20cS. For use over the temperature range of 70 to 150C

Software

Labwise (Optional PC software)

Allows two-way communication for status display, programming and data capture

Heat Exchange Coil

CW5

Temperature range: 2ºC above the temperature of the coolant. Can be placed on the end of accessory hosing for control of an open system

Accessory Pumps

VTP1-PLR4

Maximum pressure 1000 mbar, Maximum flow 9 L/min

VTP2-PLR4

Maximum pressure 1650 mbar, Maximum flow 12 L/min

Accessory notes

Required only where application demands a higher pressure than that delivered by the internal pump to maintain flow

Remote Probes

PEP

Flexible plastic probe, 3m cable

SEP

Stainless steel probe, 3m cable

Pump Connectors

P-M6

Replacement plastic pump inlet/outlet connector. Fits tubing 9mm inner dia. Temperature range -50 to200ºC

P-M11

Replacement plastic pump inlet/outlet connector. Fits tubing 15mm inner dia. Temperature range -50 to200ºC

M-UC

Pump connection plate. Female inlet & outlet, inserts required

M-SR4

Metal pump inlet/outlet connector, dual seal super rapid 4mm. Fits semi rigid tubing 4mm outer dia. Temperature range -20C to 100C

M-SR6

Metal pump inlet/outlet connector, dual seal super rapid 6mm. Fits semi rigid tubing 6mm outer dia. Temperature range -20C to 100C

M-SR8

Metal pump inlet/outlet connector, dual seal super rapid 8mm. Fits semi rigid tubing 8mm outer dia. Temperature range -20C to 100C

M-HB7

Metal pump inlet/outlet connector, tube barb 7mm. Fits flexible tubing 7mm inner dia. Temperature range -40C to 200C

M-HB9

Metal pump inlet/outlet connector, tube barb 9mm. Fits flexible tubing 9mm inner dia. Temperature range -40C to 200C

M-HB12

Metal pump inlet/outlet connector, tube barb 12mm. Fits flexible tubing 12mm inner dia. Temperature range -40C to 200C

Hosing

HOSE100

Replacement general purpose hose kit, includes 2 x 2m general purpose insulated hosing -40 to 100˚C, assembled with ecocool/OptimaTM pump outlet plate and simple hose clips, no tools required

HOSE200

High temperature hose kit, includes 2 x 2m high temperature insulated hosing -50 to 200˚C, assembled with ecocool/OptimaTM pump outlet plate and simple hose clips, no tools required
