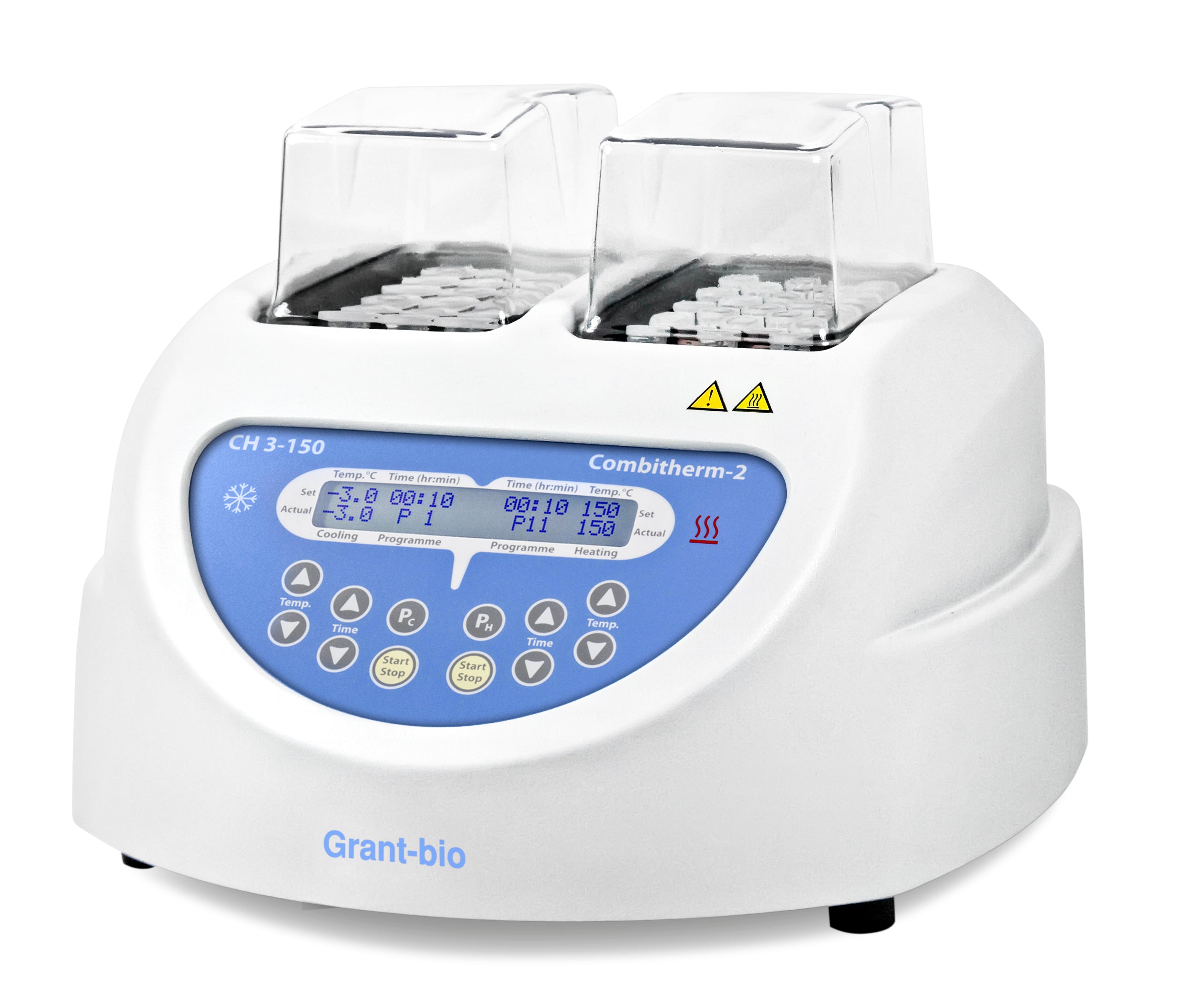

CH3-150 Combitherm-2 dry block heating/cooling system

The Grant-bio CH3-150 Combitherm-2 dry block heating cooling system is specially designed to thermostabilise materials at temperatures from –3°C to +150°C according to methods of analysis.
Applications
  • Life-science - storing restriction enzymes, nick translation, ligation reactions, restriction digests, protein solubilisation for PAGE, warm incubation of microcentrifuge tubes for hybridisation, enzyme reactions and deactivations
  • Clinical - cooling blood samples prior to coagulation testing. Acylcarnitines derivatisation, MRSA and PBP2 latex testing, heating flush/media used in egg recovery, fertility to keep test tubes at correct temperature during egg collection
  • Incubating samples at set temperatures, heating block for boiling of solutions in tubes
  • Life-science-cell digestion, DNA/RNA extraction, post sequencing PCT clean-up-dry down step, boiling in vitro DNA RNA/ protein samples, incubating invitro reactions/digestions, extraction of DNA for real-time PCR analysis, denaturing nucleic acid and protein samples
  • Industrial - digestion of environmental samples for chemical oxygen demand analysis, soil digests, maintaining temperatures
Want to understand more?
We can answer your questions and help you find the right products for your needs. Get in touch

About

  • Stability: ±0.1ºC
  • Independently regulated heating and cooling blocks in the same unit
  • Digital timer with sound alarm: 1 min to 99 h 59 min (increment 1 min)
  • User adjustable programmes (temperature and time): 16 (heating) + 16 (cooling)
  • Digital temperature control for optimum precision
  • Temperature Calibration Function
  • Protective lid

The CH3-150 has seven interchangeable blocks available. Custom blocks available on request.

Products in the range

Video

Specifications

Dimensions (h x d x w) 220 x 285 x 295mm
Heating block temperature range +25 to +150°C
Heating block temperature control range Ambient +5 to +150°C
Heating block setting resolution 1°C
Heating block stability ±0.1°C
Cooling block temperature range –3 to +20°C
Cooling block temperature control range Ambient -23 to ambient -5°C
Cooling block setting resolution 0.1°C
Cooling block stability ±0.1°C
Digital timer with sound alarm 1 min–99 hrs 59 min (increment 1 min)
User adjustable programs (temperature and time) 16 (heating) + 16 (cooling)
Display LCD
Nominal operating voltage 230V only (50/60Hz)
Weight 5.6kg
Want to speak with a product specialist to discuss your product requirements?
We can answer your questions and help you find the right products for your needs. Get in touch

Accessories

B2-50

Interchangeable block for 2 x Ø 48mm tubes, depth 58mm

B10-13

Interchangeable block for 10 x Ø 13mm tubes, flat bottom, depth 30mm

B10-16

Interchangeable block for 10 x Ø 16mm tubes, depth 56mm

B5-29

Interchangeable block for 5 x Ø 29mm tubes, flat bottom, depth 40mm

B6-25

Interchangeable block for 6 x Ø 25mm tubes, depth 40mm

B18-12

Interchangeable block for 18 x Ø 12mm tubes, round bottom, depth 58mm

B23-1.5

Interchangeable block for 23 x 1.5ml micro tubes

QBEP

Standard probe for in-sample or in-block temperature control; encased in stainless steel sheath, ø3mm x 30mm long, with 350mm of cable.

QBEP-WM

Short-form probe for in-sample or in-block temperature control; encased in stainless steel sheath, ø3mm x 14mm long, with 350mm of cable.


Speak with a product specialist
We can answer your questions and help you find the right products and accessories for your needs. Get in touch

Downloads

Product Manuals

download
PCH-1-PCH-2-PCH-3-CH3-150-Dry-Block-Operating-Instructions

Technical Datasheets

No downloads available

Further Information

download
7 - Dry Block Heaters
